F1150AA20

Power Line Filter Modules Overview

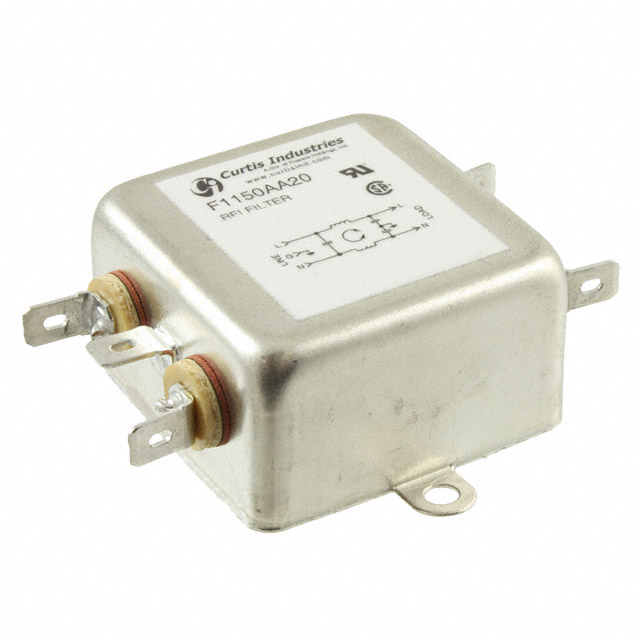

The Curtis Industries F1150AA20 is a single-phase EMI power line filter designed for chassis mounting. It operates at a maximum voltage rating of 250V AC and supports a maximum current rating of 20A. The component functions as a single-stage filter with an operating frequency of 50/60Hz. It provides a low-leakage solution for common mode EMI/RFI compliance, with leakage currents specified at .25 mA at 115 V AC and .40 mA at 250 V AC.

Power Line Filter Modules Feature Summary

• Provides a low-leakage solution to Common Mode EMI/RFI compliance
• Economical design for general purpose applications
• Available with wire leads, quick connect, or screw terminals
• Holds UL, CSA, TUV, and CE approvals

Power Line Filter Modules Applications

• General purpose equipment
• Common mode noise suppression
• Lighting systems
• Scales
• Terminals

Power Line Filter Modules Procurement Notes

Verify the specific terminal configuration and lead style required for your assembly, as the F1150 series offers wire leads, quick connect, or screw terminals. Confirm that the chassis mounting requirements align with your enclosure design. Ensure the 20A current rating and 250V AC voltage rating meet your system's electrical specifications before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this model when a cost-effective, single-stage solution for common mode emissions is needed. The F1150AA20 is suitable for applications requiring 20A capacity at 250V AC. Consider the available approval certifications (UL, CSA, TUV, CE) if regulatory compliance is mandatory for your target market. Evaluate the physical mounting constraints for chassis installation.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1150 Series RFI filters. The series is engineered to control conducted common mode emissions and reduce susceptibility to electromagnetic interference. The family includes various current ratings from 1A to 20A, offering flexibility for different power levels while maintaining consistent low-leakage performance characteristics across the range.

Power Line Filter Modules Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative models within the F1150 series or other Curtis Industries filter lines.
