F1150BB01

Power Line Filter Modules Overview

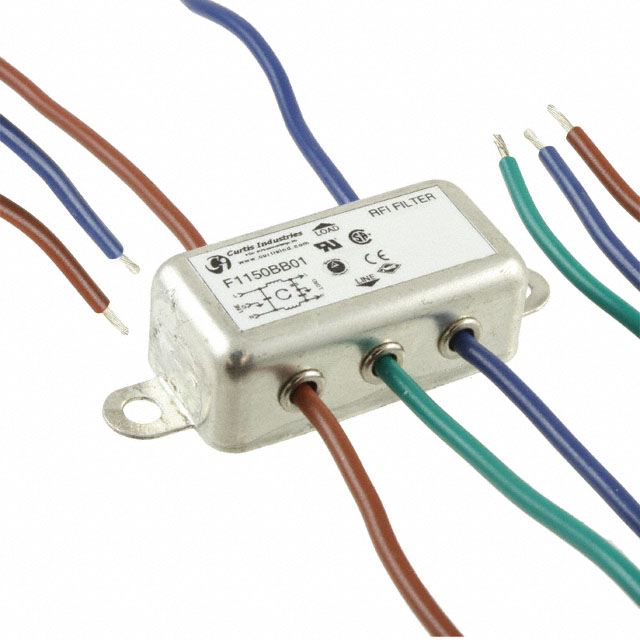

The Curtis Industries F1150BB01 is a single-phase EMC/EMI line filter module designed for chassis mounting. It operates at a rated voltage of 250V AC and supports a current rating of 1 A at 50/60Hz frequencies. The component utilizes wire leads for connection and functions as a single-stage filter to manage conducted common mode emissions. It provides a low-leakage solution, with maximum leakage current specified at .25 mA at 115 V AC and .40 mA at 250 V AC, ensuring compliance with electromagnetic interference standards.

Power Line Filter Modules Feature Summary

• Provides low-leakage performance for common mode EMI/RFI compliance
• Single-stage filtering design for conducted emission control
• Available with wire lead configurations for direct integration

Power Line Filter Modules Applications

• General purpose equipment requiring EMI suppression
• Common mode noise reduction in sensitive electronics
• Lighting systems needing filtered power input
• Precision scales and measurement terminals

Power Line Filter Modules Procurement Notes

Verify the specific part number F1150BB01 against official Curtis Industries documentation to confirm the 1A current rating and wire lead configuration. Ensure compatibility with 250V AC operational environments. Cross-reference certification marks such as UL, CSA, TUV, and CE if regulatory compliance is required for the final assembly. Confirm RoHS status through the manufacturer's latest technical data sheet before procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-phase, chassis-mountable filter with wire leads is required for 1A applications. Consider the low-leakage specification if safety isolation is critical. Evaluate the single-stage topology against system complexity requirements. Verify that the 250V AC rating aligns with the local mains voltage standards and that the physical dimensions fit the designated chassis space.

Power Line Filter Modules Part Context

This model belongs to the Curtis Industries F1150 Series RFI filters, which are engineered to reduce susceptibility to electromagnetic interference. The series offers various current ratings from 1A to 20A and multiple terminal options including quick connect and screw terminals. These filters are positioned as economical solutions for passing EMI approval testing in general industrial and commercial electronic devices.

Power Line Filter Modules Replacement Considerations

Substitute parts must match the 1A current rating, 250V AC voltage, and single-phase configuration. Verify that alternative components offer comparable leakage current specifications and hold equivalent international certifications (UL, CSA, TUV). Ensure the replacement maintains the wire lead interface or adapts appropriately to the existing chassis mount design.
