F1200AA01

Power Line Filter Modules Overview

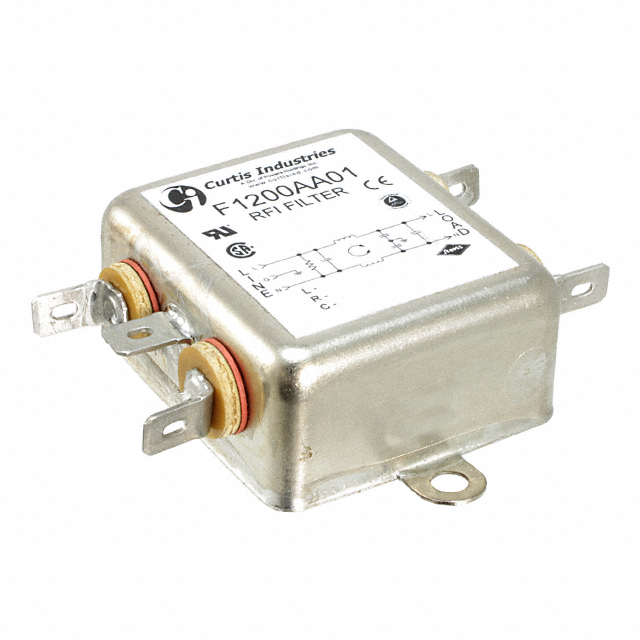

The Curtis Industries F1200AA01 is a power line filter module designed for chassis mounting. It provides EMI/RFI suppression for electrical circuits, ensuring compliance with common mode interference standards. The unit is rated for 250VAC operation and supports a current capacity of 1 Ampere. Its robust construction facilitates integration into industrial control panels and equipment requiring reliable noise filtration.

Power Line Filter Modules Feature Summary

• Provides low-leakage solution to common mode EMI/RFI compliance
• Designed for general purpose applications where noise suppression is required
• Chassis mount configuration for secure installation

Power Line Filter Modules Applications

• Industrial control systems
• General purpose electronic equipment
• Power supply input stages

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to confirm exact ratings and mechanical dimensions. Ensure compatibility with existing chassis mounting holes and terminal configurations before procurement. Cross-reference with authorized distributors to validate authenticity and availability.

Power Line Filter Modules Selection Notes

Select this component when chassis-mounted RFI filtering is required for AC power lines. Consider the 1A current rating and 250VAC voltage limit during system design. Evaluate space constraints for chassis mounting versus other form factors if higher current or different mounting styles are needed.

Power Line Filter Modules Part Context

The F1200 series from Curtis Industries offers a range of power line filter modules. These components are engineered to address electromagnetic interference issues in various electronic applications. The series utilizes a standardized numbering system to denote specific mechanical and electrical requirements for each variant.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalent models. Ensure any replacement matches the original voltage, current, and mounting specifications.
