F1250BB10

Power Line Filter Modules Overview

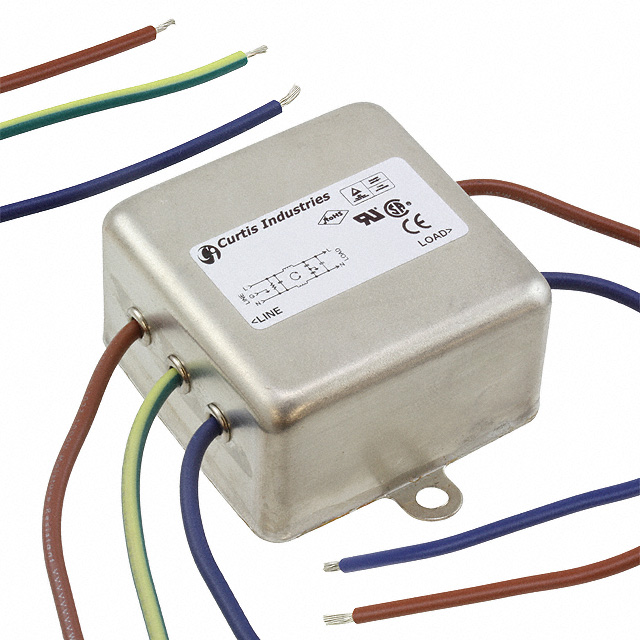

The Curtis Industries F1250BB10 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates within a frequency range of 50 to 60Hz and provides noise suppression for electrical circuits. The component belongs to the F1200/F1250/F1299 series, which utilizes a specific four-element part numbering system to denote mechanical and electrical requirements.

Power Line Filter Modules Feature Summary

• Single-phase electromagnetic interference filtering
• Chassis mount configuration

Power Line Filter Modules Applications

• General-purpose noise suppression
• Electromagnetic interference mitigation in AC power lines

Power Line Filter Modules Procurement Notes

Verify the exact datasheet version from Curtis Industries or authorized distributors to confirm current specifications. Ensure the chassis mount style matches your enclosure design. Confirm that the 50-60Hz operating frequency aligns with your system requirements before procurement.

Power Line Filter Modules Selection Notes

Select this model when single-phase EMI filtering is required for chassis installation. Consider the F1200/F1250/F1299 series family for compatible mechanical interfaces. Verify current ratings and voltage specifications against the official datasheet to ensure compatibility with the target circuit.

Power Line Filter Modules Part Context

This component is part of the Curtis Industries F1200/F1250/F1299 RFI filter series. The series employs a structured part numbering system where each element defines specific mechanical or electrical attributes. This classification helps identify filters with similar form factors and functional characteristics within the product line.

Power Line Filter Modules Replacement Considerations

Consult the official Curtis Industries catalog for direct substitutes within the F1200/F1250/F1299 series. Verify that any replacement maintains the same single-phase configuration and chassis mount dimensions. Cross-reference electrical parameters to ensure equivalent noise suppression performance.
