F1399BB06

Power Line Filter Modules Overview

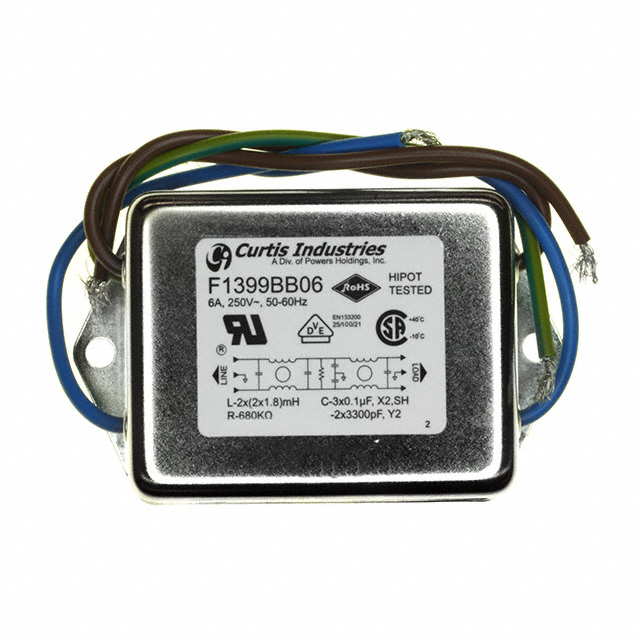

The F1399BB06 is a single-phase EMC/EMI line filter module manufactured by Curtis Industries. It features a two-stage configuration designed for noise reduction in power lines. The unit supports an output current rating of 6 Amps and operates at a voltage rating of 250VAC at 50/60Hz. Leakage current ranges from 0.25 to 0.45 mA. The component utilizes wire leads for both line and load termination and is intended for chassis mounting applications.

Power Line Filter Modules Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Single-phase design for AC power line applications
• Chassis mount construction for secure installation

Power Line Filter Modules Applications

• Single-phase power line noise reduction
• EMC/EMI mitigation in electronic equipment
• Chassis-mounted power supply filtering

Power Line Filter Modules Procurement Notes

Verify the specific leakage current requirements against the 0.25 to 0.45 mA specification range. Confirm that the 6A current rating and 250VAC voltage limits align with the target circuit design. Ensure chassis mounting provisions are available in the final assembly to accommodate the physical form factor of this filter module.

Power Line Filter Modules Selection Notes

Select this component when a two-stage EMI filter is required for single-phase systems. The 6A rating suits moderate power applications, while the wire lead termination simplifies integration into existing harnesses. Consider the chassis mount style if panel or enclosure space allows for direct hardware attachment rather than PCB footprint constraints.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F1399 series of power line filters. The series offers various configurations including different current ratings and termination styles. The F1399BB06 specifically addresses single-phase needs with wire leads, distinguishing it from barrier type or European style terminal block variants within the broader product family.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for verified substitute part numbers within the F1399 series. Ensure any replacement maintains the two-stage configuration and matches the 6A current and 250VAC voltage specifications. Verify compatibility with chassis mounting requirements before substitution.
