F1700AA20

Power Line Filter Modules Overview

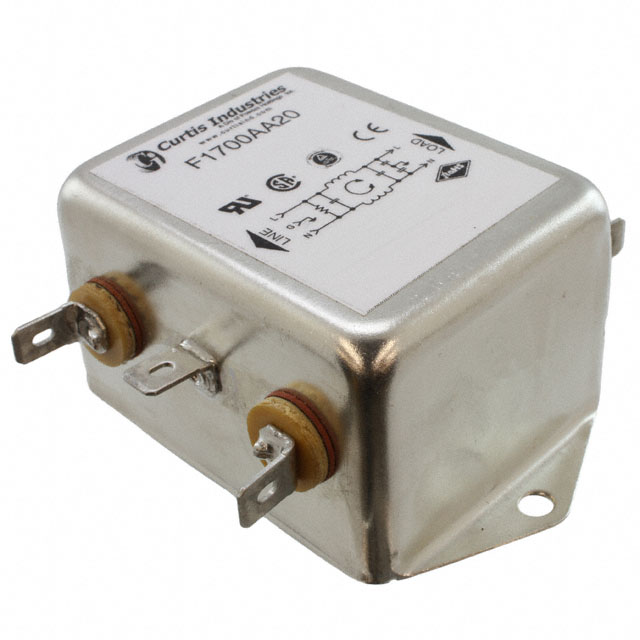

The Curtis Industries F1700AA20 is a single-phase EMC/EMI line filter module designed for power line noise suppression. It features a current rating of 20 A and a voltage rating of 250 VAC at 50/60 Hz frequencies. The unit utilizes quick connect terminals for circuit integration and supports flange mounting for secure installation. Leakage current specifications range from 0.40 to 0.75 mA, ensuring compliance with safety standards for general-purpose applications requiring effective radio frequency interference mitigation.

Power Line Filter Modules Feature Summary

• Single-stage RFI filtering architecture for efficient noise reduction
• Quick connect terminal configuration for simplified wiring
• Flange mount design for stable mechanical attachment

Power Line Filter Modules Applications

• General-purpose AC power line noise suppression
• EMC/EMI compliance in electronic equipment
• Industrial control system power inputs

Power Line Filter Modules Procurement Notes

Verify the exact part number F1700AA20 against manufacturer documentation to confirm the 20A rating and 250VAC specification. Ensure compatibility with existing flange mounting hardware and quick connect terminal interfaces before procurement. Cross-reference datasheets for leakage current limits to ensure adherence to specific regulatory requirements.

Power Line Filter Modules Selection Notes

Select this component when a single-phase solution is required for 250VAC systems operating at 50/60 Hz. The 20A current capacity suits moderate power loads. Verify that the quick connect interface matches the mating connector type and that the flange mounting dimensions fit the available enclosure space.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1700 series of power line filter modules. These filters are engineered for general-purpose electromagnetic interference suppression in AC power circuits. The series offers various current ratings and mounting options to accommodate diverse industrial and commercial power distribution needs.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Ensure any replacement maintains the 20A current rating, 250VAC voltage rating, and single-phase configuration. Verify that physical mounting styles and terminal types remain compatible with the existing assembly.
