F1780AA06

Power Line Filter Modules Overview

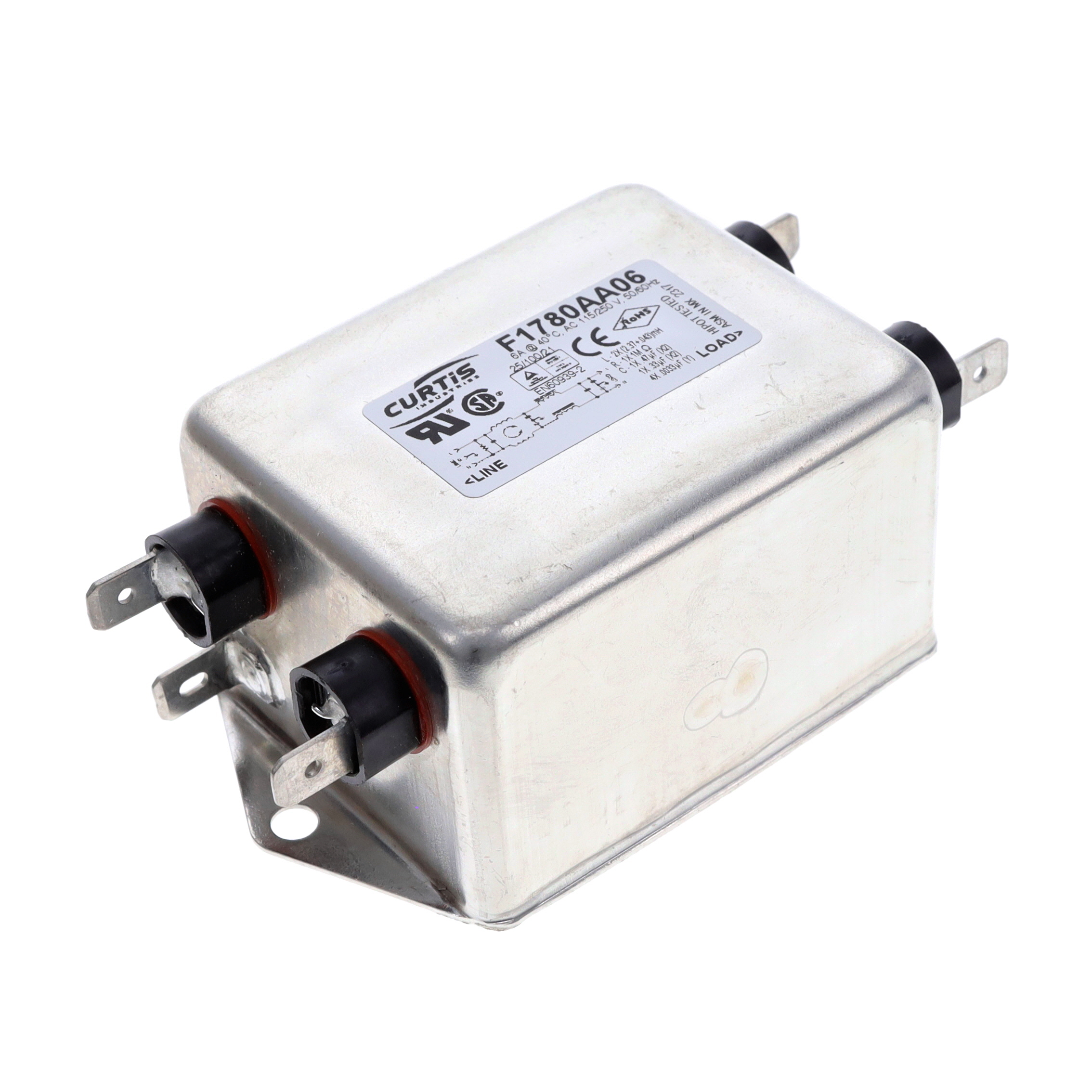

The Curtis Industries F1780AA06 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It operates at 250VAC with a rated current of 6A and supports 50/60Hz frequencies. The unit utilizes a single-stage filtering architecture to suppress radio frequency interference in electrical systems. Termination is achieved via quick connect terminals, facilitating integration into industrial and medical equipment applications requiring reliable noise reduction.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI suppression for AC power lines
• Chassis mount design for secure installation
• Quick connect termination for simplified wiring

Power Line Filter Modules Applications

• Medical equipment power supplies
• Industrial control systems
• Electronic instrumentation

Power Line Filter Modules Procurement Notes

Verify the specific part number suffix against official Curtis Industries documentation to confirm exact ratings and terminal configurations. Ensure compatibility with existing chassis mounting holes and wire gauge requirements before procurement. Cross-reference datasheets for environmental operating limits.

Power Line Filter Modules Selection Notes

Select this component when single-phase EMI filtering is required for 6A circuits at 250VAC. The quick connect interface suits applications needing rapid assembly. Verify that the single-stage attenuation meets system noise immunity standards compared to multi-stage alternatives.

Power Line Filter Modules Part Context

This model belongs to the Curtis Industries F1780 series of power line filters. These modules are engineered for general-purpose electromagnetic interference suppression in AC power distribution networks. The series offers various current ratings and termination styles to accommodate diverse industrial and commercial electronic hardware designs.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for equivalent single-phase EMI filters with matching 6A/250VAC ratings and quick connect terminations. Verify physical footprint compatibility for direct replacement without chassis modification.
