F1799DD30

Power Line Filter Modules Overview

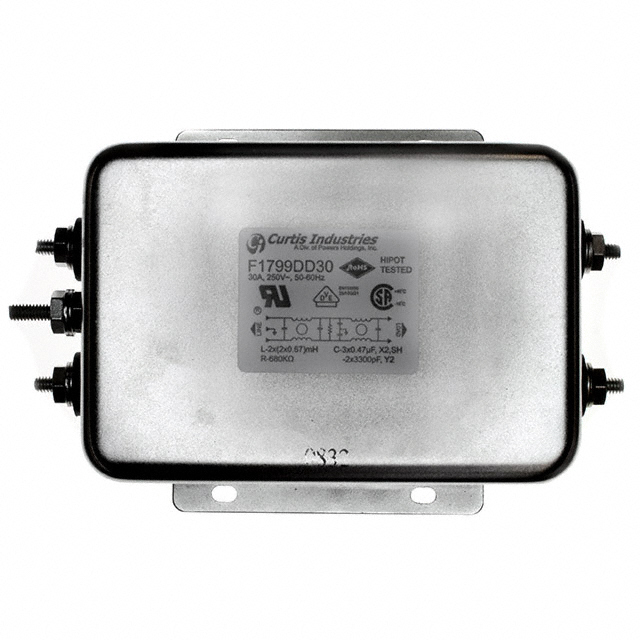

The Curtis Industries F1799DD30 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features a two-stage configuration to suppress electromagnetic interference in electrical circuits. The component operates at a rated AC voltage of 250V and supports a continuous current of 30A at frequencies of 50/60Hz. Termination is achieved via threaded posts with an 8-32 thread specification, ensuring secure mechanical and electrical connections.

Power Line Filter Modules Feature Summary

• Provides two-stage filtering for effective suppression of electromagnetic interference
• Supports high current capacity of 30A for demanding industrial applications
• Utilizes threaded post termination for robust mechanical stability

Power Line Filter Modules Applications

• Industrial machinery control systems
• Commercial equipment requiring EMI/RFI mitigation
• Power distribution units needing single-phase line filtering

Power Line Filter Modules Procurement Notes

Verify the specific termination style matches the design requirements, as this model uses threaded posts rather than quick-connect terminals found in other series. Confirm that the 30A current rating aligns with the system's operational load. Ensure chassis mounting provisions are available for installation. Cross-reference certification marks such as CE, CSA, TUV, and UR if regulatory compliance is mandatory for the target market.

Power Line Filter Modules Selection Notes

Select this model when high current handling is required alongside effective noise reduction. The threaded post interface offers superior mechanical retention compared to snap-in types. Consider the physical dimensions and mounting hole patterns during PCB or panel layout. Verify that the 250VAC rating is sufficient for the local mains supply voltage. Compare against lower current variants in the F1799 series if the load does not require 30A.

Power Line Filter Modules Part Context

This component belongs to the Curtis Industries F1799 series of power line filters. This series is engineered for machinery control applications, providing reliable EMI/RFI protection. The manufacturer specializes in electrical components for commercial and industrial machines, ensuring durability and performance in harsh environments.
