F1A2-383815-100M

$0.76

Description：FIXED IND 10.0UH 760MA 245 MOHM
Series：F1A2-3838
Mfr：Signal Transformer
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:652d533a584c Category: Fixed Inductors Brand: Signal Transformer

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

F1A2-383815-100M is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Signal Transformer. Its product description is FIXED IND 10.0UH 760MA 245 MOHM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for F1A2-383815-100M

Description：FIXED IND 10.0UH 760MA 245 MOHM
Series：F1A2-3838
Mfr：Signal Transformer
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Wirewound
Material - Core：-
Inductance：10 µH
Tolerance：±20%
Current Rating (Amps)：760 mA
Current - Saturation (Isat)：900mA
Shielding：Shielded
DC Resistance (DCR)：245mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max)：0.059" (1.50mm)
Features：-

Fixed Inductors datasheet and documents for F1A2-383815-100M

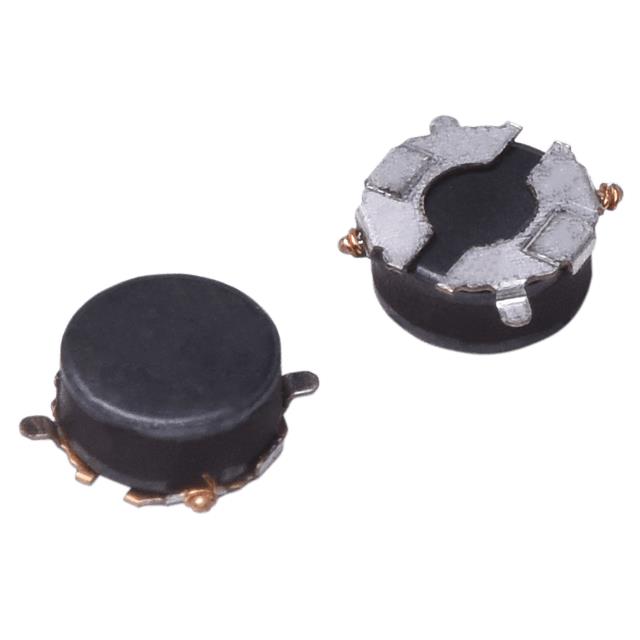

F1A2-383815-100M

Fixed Inductors Overview

The F1A2-383815-100M is a shielded surface-mount power inductor from the Bel Signal Transformer portfolio. It features a wirewound construction with an inductance of 10 µH and a tolerance of 20%. The component supports a maximum DC current of 760 mA and has a maximum DC resistance of 245 mOhms. It operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

Shielded SMT design for high-frequency noise attenuation
Wirewound core structure for stable performance
Optimized for compact PCB mounting

Fixed Inductors Applications

DC to DC Converters
High-power signal filtering
Attenuating electrical circuit noise

Fixed Inductors Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm compatibility with target circuit requirements. Ensure that the thermal operating limits and saturation characteristics align with system specifications before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component for applications requiring shielded inductors with defined saturation currents. Compare the 10 µH value and 760 mA rating against alternative models in the F1 series to ensure optimal fit for space-constrained designs.

Fixed Inductors Part Context

This component belongs to the F1A2 series of high-power shielded SMD inductors. These devices are engineered to block, attenuate, and filter high-frequency noise in electrical circuits, providing reliable performance in demanding electronic environments.
