F2700AA03

Power Line Filter Modules Overview

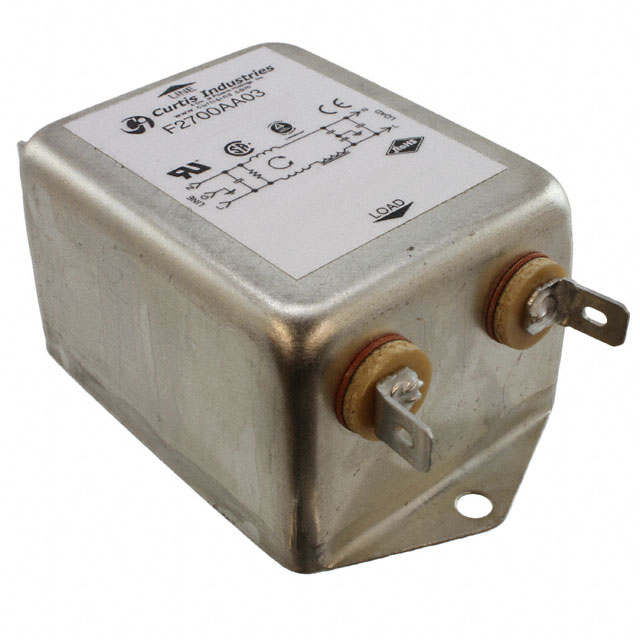

The Curtis Industries F2700AA03 is a single-phase EMC/EMI line filter designed for power line noise suppression. It operates at a voltage rating of 250VAC and supports a current rating of 3A at 50Hz or 60Hz frequencies. The component utilizes a quick connect terminal interface for circuit integration and features a flange mount chassis configuration for secure installation. Leakage current specifications range from 0.25 to 0.40 mA, ensuring compliance with safety standards.

Power Line Filter Modules Feature Summary

• Single-stage EMI/EMC filtering capability for power lines
• Quick connect terminal interface for simplified wiring
• Flange mount chassis design for robust physical attachment

Power Line Filter Modules Applications

• Industrial equipment power input stages
• Medical device power supply filtering
• Commercial appliance noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version provided by Curtis Industries to confirm exact leakage current limits and insulation ratings. Ensure the mounting hole dimensions match the chassis design. Confirm RoHS compliance status if required by local regulations. Cross-reference the quick connect terminal type with existing harness specifications to guarantee proper electrical contact and mechanical retention during operation.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise attenuation is required for low-current applications up to 3A. The flange mount style is suitable for panel installations where space constraints limit other form factors. Verify that the 250VAC rating aligns with the system's maximum operating voltage. Consider the quick connect terminals if rapid assembly or maintenance access is a priority over soldered connections.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries F2700 series of power line filters. The series offers various current and voltage ratings tailored for different electromagnetic interference mitigation needs. The F2700AA03 specifically addresses standard household and light industrial voltage levels with moderate current requirements.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries documentation for direct cross-references. Ensure any substitute maintains the 3A current rating, 250VAC voltage rating, and compatible flange mounting dimensions. Verify that alternative components offer equivalent leakage current characteristics and quick connect terminal compatibility.
