F3099AA06

Power Line Filter Modules Overview

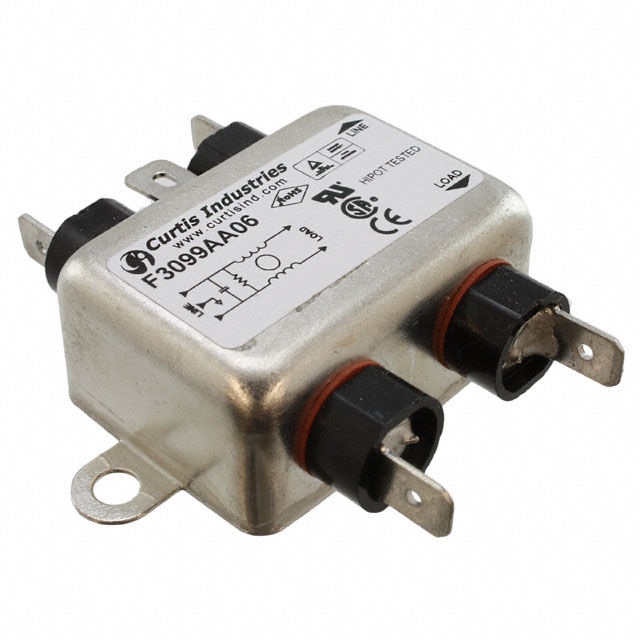

The Curtis Industries F3099AA06 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current capacity of 6A at 50/60Hz frequencies. The unit utilizes a single-stage filtering architecture with quick-connect terminals for circuit integration. This component serves as an interference suppression device for power lines, ensuring compliance with electromagnetic compatibility standards in industrial applications.

Power Line Filter Modules Feature Summary

• Single-phase EMC/EMI line filtering capability
• Chassis mount configuration for secure installation
• Quick connect terminal interface for simplified wiring

Power Line Filter Modules Applications

• Industrial power supply input stages
• Electromagnetic interference suppression in control panels
• Compliance filtering for AC power entry points

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version to confirm exact attenuation curves and physical dimensions before integration. Ensure the mounting hardware matches the chassis specifications. Confirm that the quick-connect terminals align with the mating connector requirements of the target system design.

Power Line Filter Modules Selection Notes

Select this component when single-phase noise reduction is required for 250VAC systems drawing up to 6A. The chassis mount style is suitable for panel-level integration rather than PCB mounting. Evaluate the need for single-stage filtering against more complex multi-stage requirements based on specific EMI profiles.

Power Line Filter Modules Part Context

This part belongs to the Curtis Industries power line filter module series. These components are engineered for robust performance in environments requiring reliable noise suppression. The manufacturer specializes in electronic interconnects and filtering solutions for demanding industrial and commercial applications.

Power Line Filter Modules Replacement Considerations

Consult official substitution guides for equivalent single-phase filters with matching 6A and 250VAC ratings. Verify that any alternative maintains the same chassis mount footprint and quick-connect terminal type to ensure mechanical compatibility.
