F3600T080

Power Line Filter Modules Overview

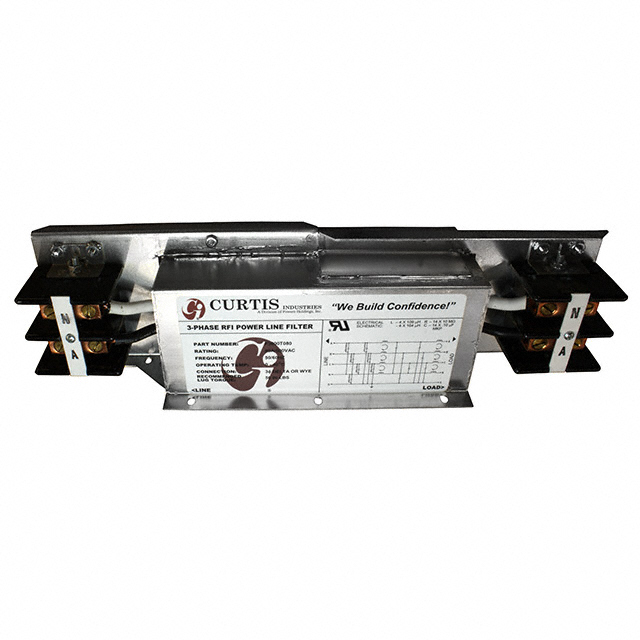

The Curtis Industries F3600T080 is a three-phase (Wye) EMC/EMI line filter designed for industrial power applications. It features an 80 A output current rating and operates at a voltage of 600 V with 50/60 Hz frequency support. The unit utilizes a two-stage filtering architecture to suppress electromagnetic interference effectively. Electrical specifications include a leakage current of 30 mA. The component employs terminal block connections for both load and line termination, ensuring secure integration into power distribution systems.

Power Line Filter Modules Feature Summary

• Two-stage EMI/EMC filtering architecture for enhanced noise suppression
• Terminal block termination for reliable electrical connections
• Three-phase Wye configuration compatibility

Power Line Filter Modules Applications

• Industrial motor drive systems
• Power distribution panels
• Electrical equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version and technical parameters directly from Curtis Industries official documentation before procurement. Confirm that the terminal block interface and mounting requirements align with your system design. Ensure the 80 A current rating and 600 V voltage specifications meet your operational needs. Cross-reference part numbers to avoid confusion with similar models in the F3600 series.

Power Line Filter Modules Selection Notes

Select this model when a three-phase Wye configuration is required for high-current applications up to 80 A. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the terminal block termination style if screw-down connections are preferred over other methods. Verify space constraints as chassis mount dimensions must fit the installation area.

Power Line Filter Modules Part Context

The F3600T080 belongs to the Curtis Industries F3600 series of power line filter modules. This series is engineered for robust performance in demanding industrial environments. Curtis Industries specializes in high-quality electrical components for military and commercial applications, emphasizing reliability and precision manufacturing processes across their product lines.

Power Line Filter Modules Replacement Considerations

Consult official Curtis Industries substitution guides for verified equivalents. Ensure any replacement maintains the same three-phase Wye configuration, 80 A current rating, and 600 V voltage rating. Terminal block interface compatibility is critical for direct swap scenarios without rewiring modifications.
