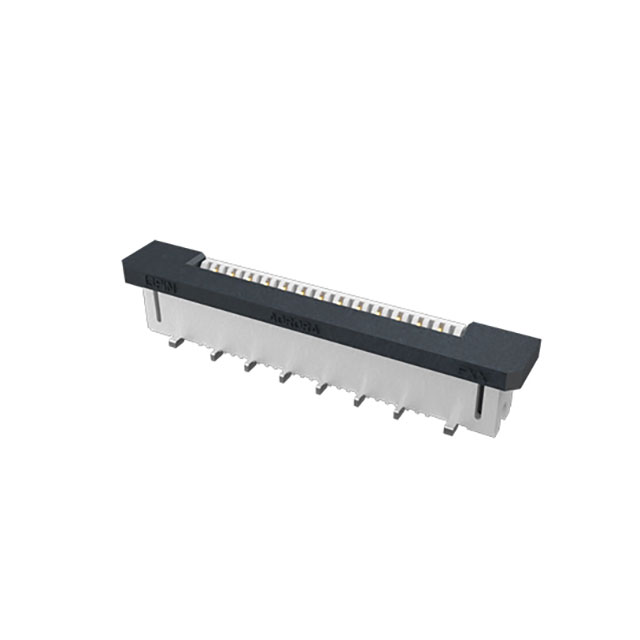

F51W-1A7H1-11010

F51W-1A7H1-11010 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN FFC FPC VERT 10POS 1MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for F51W-1A7H1-11010

• Description：CONN FFC FPC VERT 10POS 1MM SMD
• Series：Aorora F51W
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：10
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.33mm
• Height Above Board：0.167" (4.25mm)
• Locking Feature：Slide Lock
• Cable End Type：Notched
• Contact Material：Phosphor Bronze
• Contact Finish：Gold
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material：Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for F51W-1A7H1-11010
