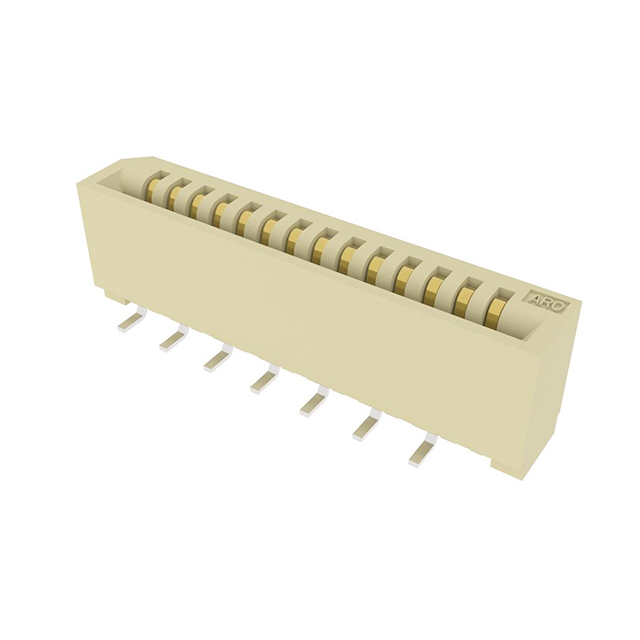

F52L1A7A111014B100

F52L1A7A111014B100 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is FLEX CONNECTOR, P=1.00MM, H=5.04. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for F52L1A7A111014B100

• Description：FLEX CONNECTOR, P=1.00MM, H=5.04
• Series：Aorora F52L
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Flat Flex Type：FFC, FPC
• Mounting Type：Surface Mount
• Connector/Contact Type：Contacts, Vertical - 1 Sided
• Number of Positions：10
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.198" (5.04mm)
• Locking Feature：-
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Liquid Crystal Polymer (LCP)
• Actuator Material：-
• Features：-
• Voltage Rating：50V
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for F52L1A7A111014B100
