F88G90SE

Overview

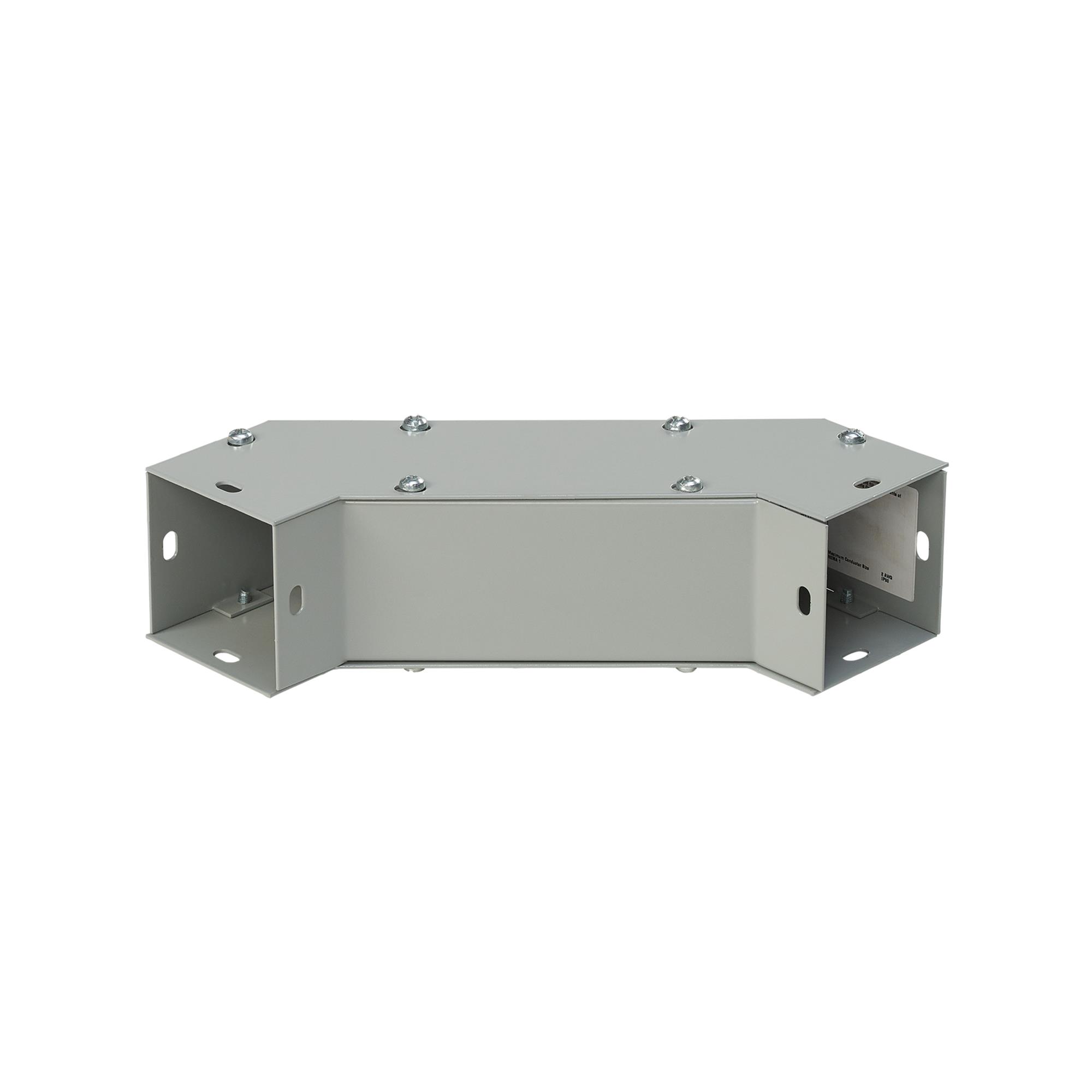

The Hoffman Enclosures F88G90SE is a sweep elbow fitting designed for wireway systems. It features a 90-degree configuration with dimensions of 8.00 x 8.00 inches (203.2 mm x 203.2 mm). Constructed from steel, the unit includes a gray polyester powder painted finish compliant with ANSI 61 standards. The component supports UL 870 and CUL certifications, ensuring adherence to safety regulations for electrical installations.

Feature Summary

• Features a lay-in design that permits wires and cables to be laid in along the wireway run during installation.
• Includes top and bottom removable covers to facilitate easy access for wiring maintenance and modifications.
• Engineered specifically for creating large-radius turns within continuous wireway runs.

Applications

• Creating 90-degree turns in industrial wireway systems
• Facilitating large-radius cable routing in electrical distribution networks
• Connecting straight wireway sections in commercial building infrastructure

Procurement Notes

Verify that the specified 8x8 inch dimensions match the existing wireway system requirements. Confirm that the steel construction and gray finish are compatible with the environmental conditions of the installation site. Ensure compliance with local electrical codes regarding UL 870 and CUL standards before procurement.

Selection Notes

Select this component when a 90-degree turn with an 8-inch by 8-inch cross-section is required. The lay-in feature is essential for projects where cables need to be added or adjusted after initial trunking installation. Consider the steel material and protective coating for durability in standard indoor or protected outdoor environments.

Part Context

This part belongs to the Hoffman Lay-In series of wireway fittings. It is designed to integrate seamlessly with other components in the Hoffman wireway family, providing a standardized solution for directional changes in electrical conduit systems while maintaining structural integrity and accessibility.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing wireway brands if direct replacement is necessary.
