F88G90TX

Overview

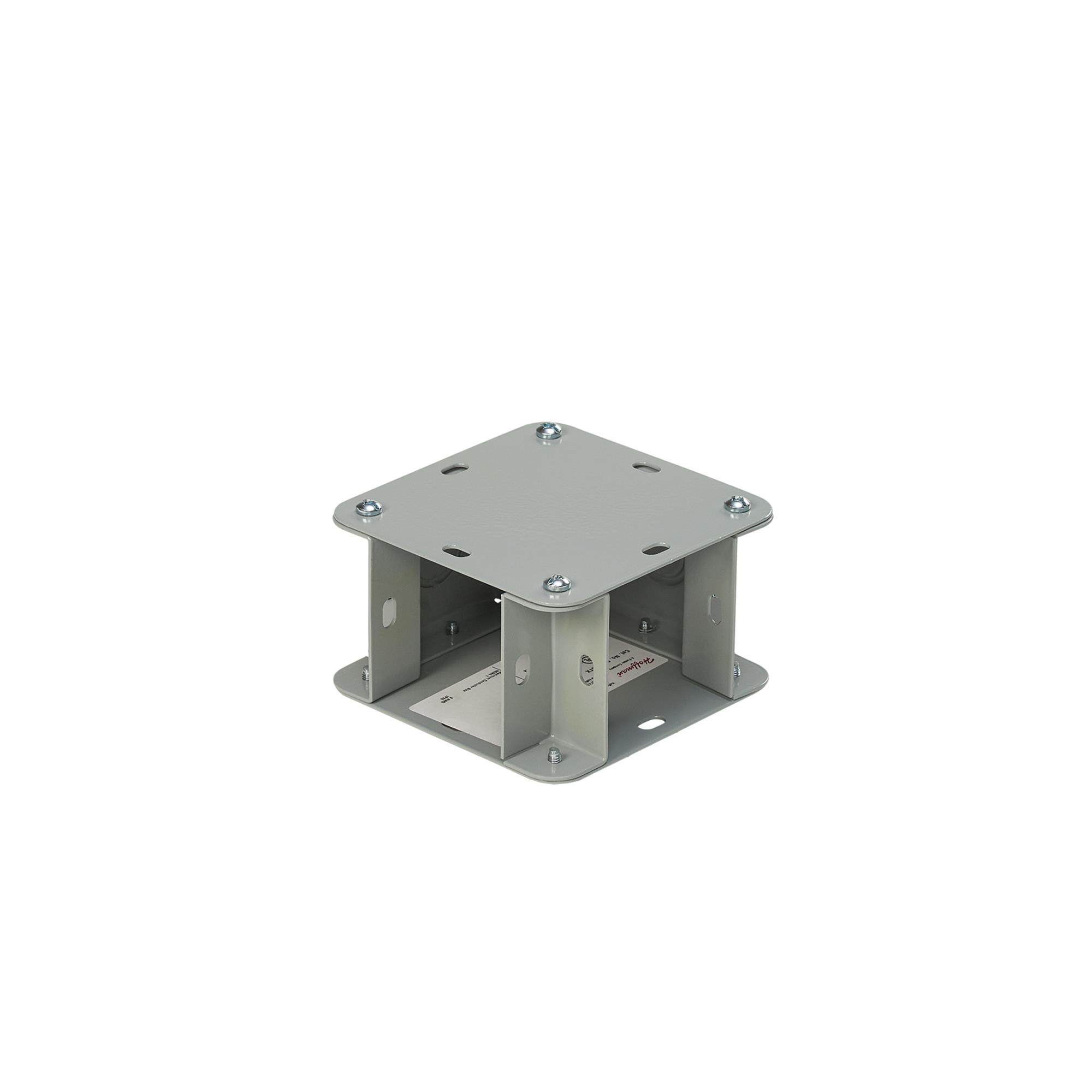

The Hoffman F88G90TX is a Type 1 wireway fitting constructed from 14/16 gauge steel with an ANSI 61 gray polyester powder coated finish. It measures 10 inches in width and depth, with an intersection size of 5 inches. The component forms left or right 90-degree turns and functions as a tee or cross. It includes two closure plates and is designed for use with open adapters to facilitate cable entrance in the top and bottom sections.

Feature Summary

• Forms left or right 90-degree turns
• Functions as a tee or cross configuration
• Includes two closure plates

Applications

• Cable management in industrial enclosures
• Wireway system intersections
• Electrical equipment safeguarding

Procurement Notes

Verify that the specific order matches the F88G90TX part number to ensure correct dimensions and material specifications. Confirm compatibility with existing wireway systems and required adapter types for proper installation. Check for any regional manufacturing variations or updated finish standards before finalizing procurement.

Selection Notes

Select this component when a multi-directional wireway connection is required within a NEMA 1 environment. Ensure the 10-inch by 10-inch footprint aligns with the overall enclosure design. Consider the inclusion of closure plates for unused openings to maintain environmental protection ratings during installation.

Part Context

This fitting belongs to the Hoffman Enclosures wireway series, designed for robust electrical infrastructure. It complements other Hoffman components to create complete cable routing solutions. The product supports standard industrial applications requiring durable steel construction and reliable connectivity options.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional compatibility if considering alternative manufacturers for this specific wireway elbow-tee-cross configuration.
