F88GTGV

Overview

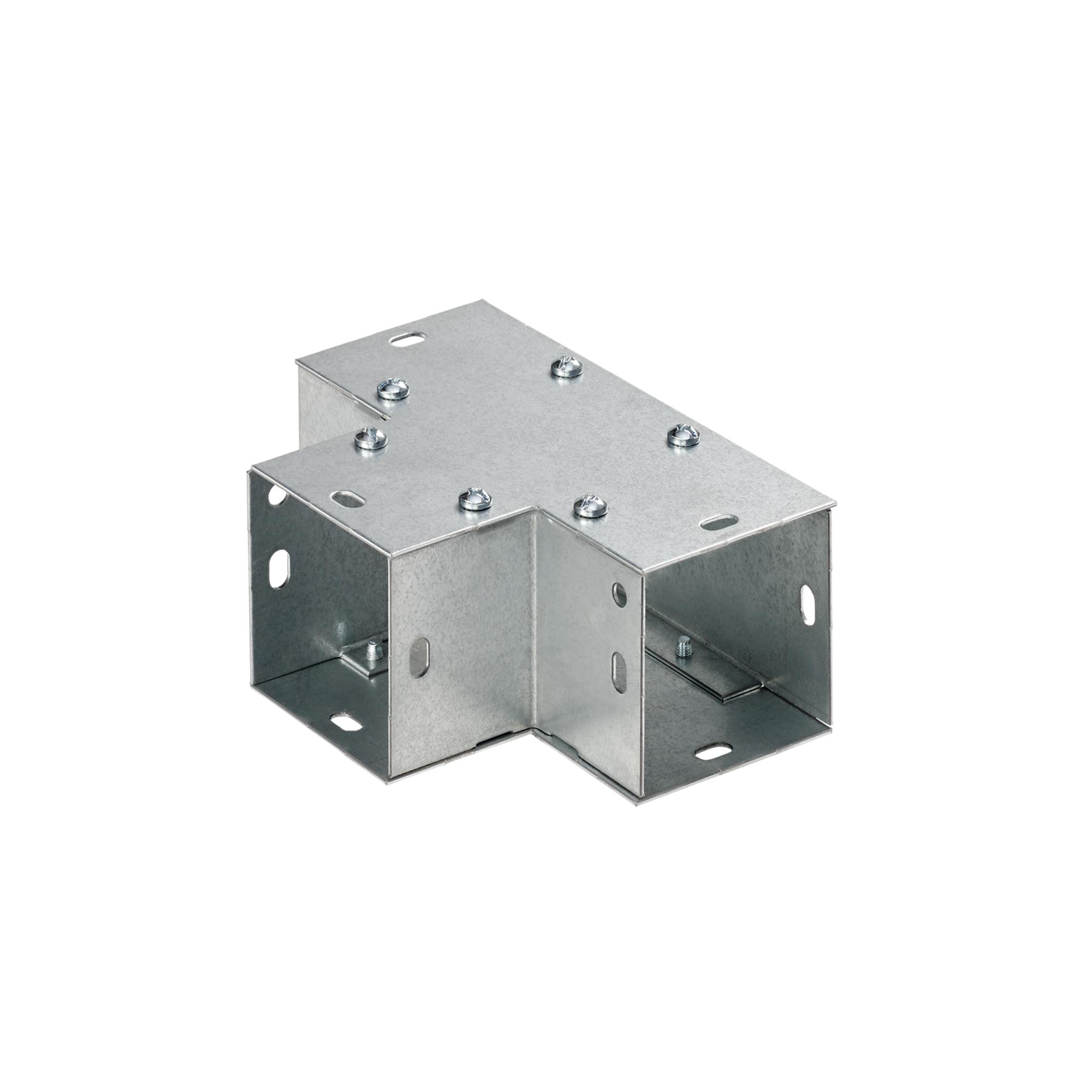

The F88GTGV is a galvanized steel conduit fitting manufactured by Hoffman Enclosures, Inc. It is designed as an 8-inch by 8-inch tee connector with a 90-degree bend angle. The component features a flush mount design intended for installation against vertical or horizontal surfaces. This fitting supports the lay-in wireway system, allowing wires and cables to be laid directly into the enclosure structure without additional bending tools.

Feature Summary

• Constructed from galvanized steel for corrosion resistance
• Features a 90-degree bend angle for directional routing
• Designed for flush mounting against vertical or horizontal surfaces
• Supports lay-in installation of wires and cables

Applications

• Flush mounting against vertical surfaces in industrial enclosures
• Flush mounting against horizontal surfaces in industrial enclosures
• Integration with 8 x 8 inch NEMA 1 lay-in wireway systems
• Routing electrical wires and cables within steel enclosure structures

Procurement Notes

Verify that the required dimensions match the 8 x 8 inch specification. Confirm the material is galvanized steel if corrosion resistance is required. Ensure compatibility with the specific NEMA 1 lay-in wireway system being used. Check that the 90-degree bend angle aligns with the cable routing design. Validate that the flush mount requirement matches the installation surface orientation.

Selection Notes

Select this component when an 8 x 8 inch tee connection is needed for a lay-in wireway system. Choose this part if the installation requires a 90-degree bend. Opt for this model when flush mounting against a flat surface is necessary. Consider the galvanized steel construction for environments requiring standard corrosion protection. Ensure the application involves laying wires and cables directly into the structure.

Part Context

This fitting belongs to the Hoffman Enclosures line of conduit and fitting accessories. It is specifically engineered for use with their NEMA 1 lay-in wireway products. The product is manufactured by Hoffman Enclosures, Inc., which is now part of nVent. These fittings are standard components for constructing electrical distribution paths within industrial control panels and enclosures.

Replacement Considerations

• F40GF

FAQ

What is the bend angle of the F88GTGV?

The F88GTGV has a 90-degree bend angle.

What type of mounting does this fitting support?

It is designed for flush mounting against vertical or horizontal surfaces.

What is the primary material of the F88GTGV?

The fitting is made of galvanized steel.
