F88LE45B

Overview

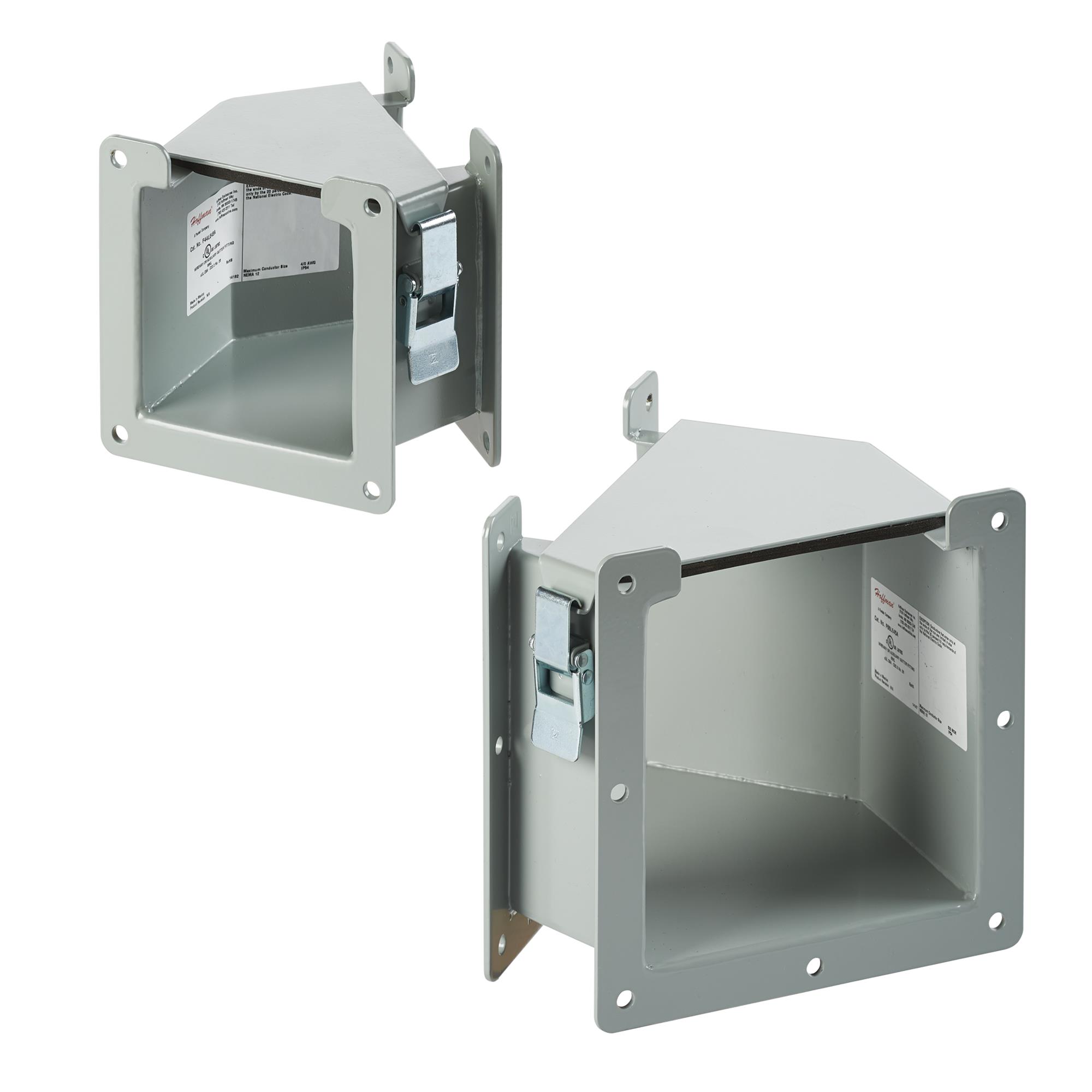

The F88LE45B is a 45-degree wireway elbow fitting manufactured by nVent HOFFMAN. Constructed from steel with a gray finish, this component belongs to the Lay-In series and features an 8-inch by 8-inch internal opening dimension. It is designed for use in cable trunking systems requiring directional changes. The fitting includes removable top and bottom covers to facilitate continuous cable runs. It carries cULus certification and meets NEMA 12 enclosure standards.

Feature Summary

• Features removable top and bottom covers for easy cable installation
• Designed for continuous cable runs with directional turns
• Constructed from durable steel material

Applications

• Cable trunking systems requiring 45-degree bends
• Electrical panel wiring infrastructure
• Industrial enclosure cable management

Procurement Notes

Verify the manufacturer designation as nVent HOFFMAN or Hoffman Enclosures, Inc., as corporate branding may vary across documentation. Confirm that the physical dimensions match the required 8x8 inch specification. Ensure the material composition is steel and the color is gray. Check for cULus marking on the product or datasheet to verify safety compliance. Note that some distributors list this item as discontinued; confirm current availability status before ordering.

Selection Notes

Select this model when a rigid 45-degree transition is required within a steel wireway system. The 8x8 inch size accommodates specific cable bundle volumes. Verify compatibility with adjacent straight sections of the same series. The NEMA 12 rating indicates suitability for indoor environments where dripping non-corrosive liquids are a concern. Ensure the bend radius aligns with the minimum requirements of the cables being installed.

Part Context

This component is part of the Hoffman Lay-In series, which provides standardized solutions for electrical enclosures. The F88LE45B specifically addresses the need for structured cable routing within industrial control panels. It complements other fittings in the same series to create complete conduit pathways. The design emphasizes ease of maintenance through its accessible cover structure.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify if generic steel elbows of identical dimensions meet the specific NEMA 12 and cULus requirements. Cross-reference with the manufacturer's current catalog for updated series equivalents.
