F88LE9AC

Overview

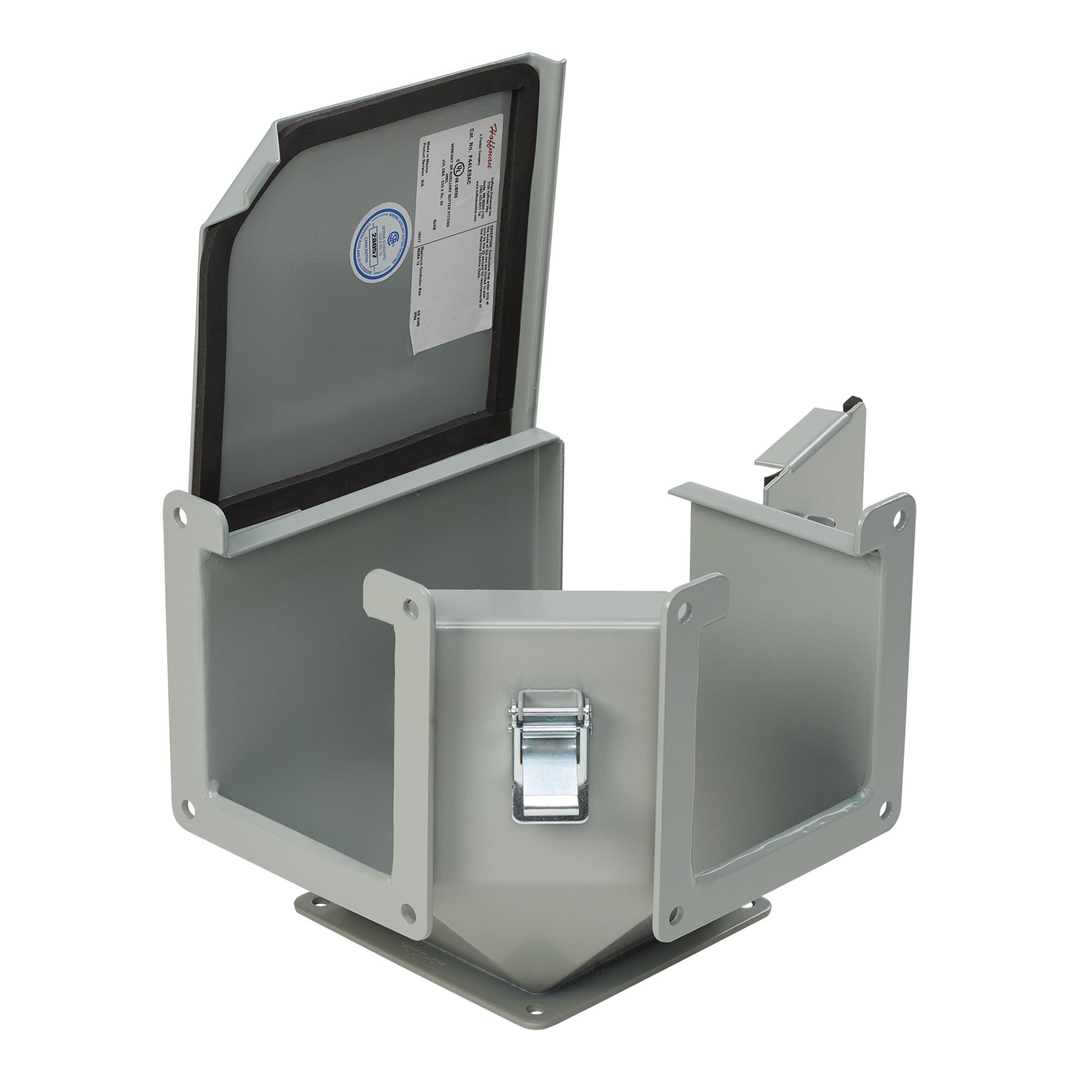

The Hoffman Enclosures F88LE9AC is a 90-degree elbow fitting designed for use with NEMA Type 12 lay-in wireway systems. Manufactured by nVent Hoffman, this component features an outside top opening configuration to facilitate conduit routing and cable management within industrial enclosures. Constructed from steel with a gray painted finish, it provides durable protection against dust and light splashing water in accordance with NEMA 12 standards. The fitting connects 8-inch by 8-inch wireway sections, maintaining structural integrity and environmental sealing at the junction point.

Feature Summary

• Provides a 90-degree directional change for wireway conduit routing
• Features an outside top opening design for accessible cable installation
• Constructed from steel with a protective gray painted finish
• Designed to maintain NEMA Type 12 environmental ratings

Applications

• Connecting 8x8 inch NEMA 12 lay-in wireway sections
• Industrial electrical enclosure conduit routing
• Cable management systems requiring 90-degree transitions

Procurement Notes

Verify compatibility with existing 8x8 inch NEMA 12 wireway systems before procurement. Confirm that the outside top opening orientation matches the intended installation layout. Ensure the steel construction and gray finish are suitable for the specific environmental conditions of the deployment site. Cross-reference part numbers with official nVent Hoffman documentation to avoid substitution errors.

Selection Notes

Select this component when a 90-degree transition is required between 8x8 inch wireway segments. The outside top opening design is critical for applications where access from above is preferred or necessary. Consider the steel material and NEMA 12 rating for indoor industrial environments requiring protection against dust and non-corrosive liquids. Ensure dimensional accuracy for seamless integration with adjacent wireway components.

Part Context

This fitting belongs to the Hoffman F10 series of rack accessories and wireway components. It is specifically engineered to complement the company's line of NEMA Type 12 enclosures and associated conduit systems. The product supports standardized industrial electrical infrastructure by providing reliable connection points for cable routing within controlled environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify exact dimensional and rating specifications if considering alternative manufacturers.
