F88LE9B

Overview

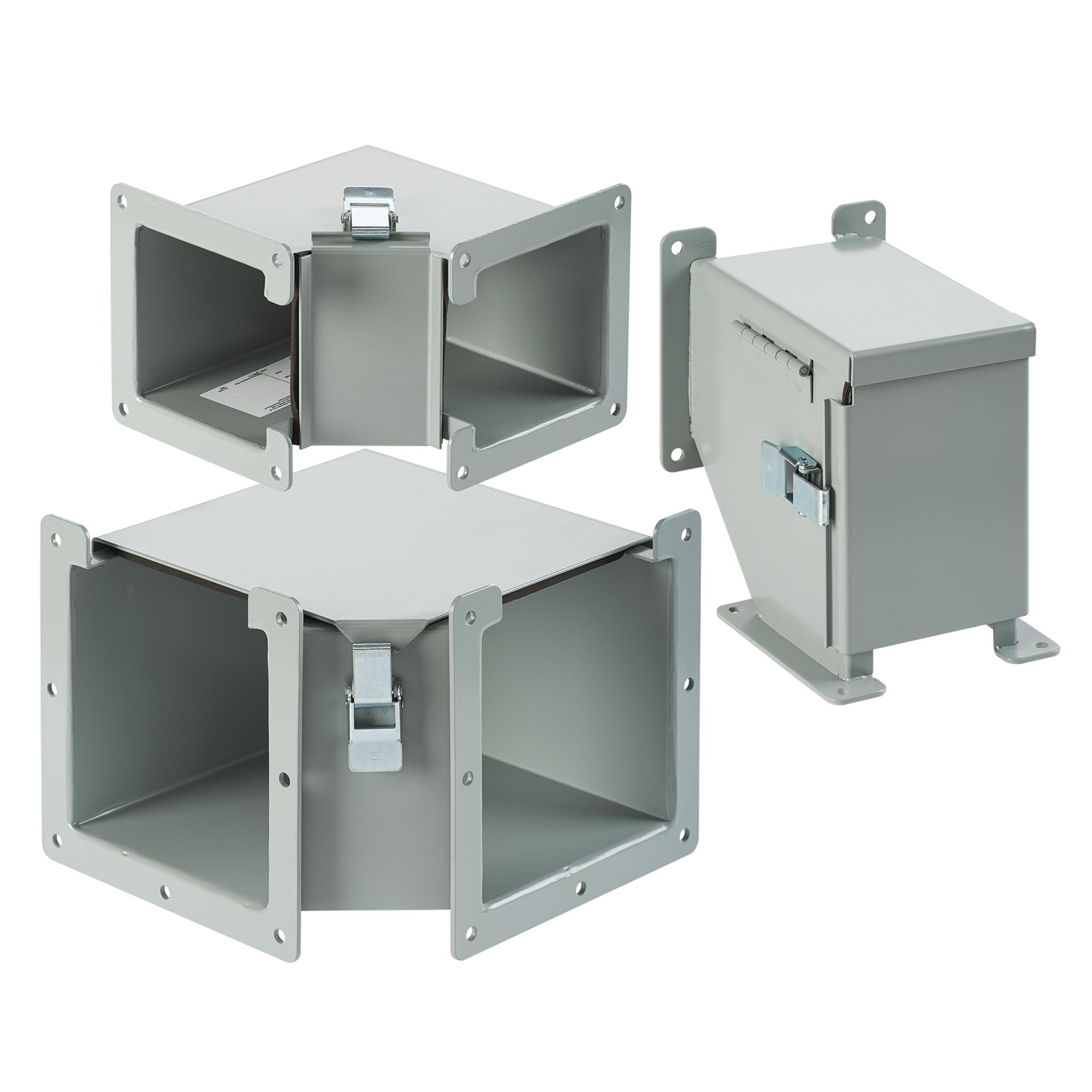

The Hoffman Enclosures Inc. F88LE9B is an 8-inch by 8-inch, 90-degree inside open elbow fitting designed for the F10 Series lay-in wireway system. Constructed from steel with a gray finish, this component facilitates right-angle cable routing in indoor industrial environments. It features a gasketed design to meet NEMA Type 12 standards, providing protection against oil and other contaminants. The unit includes a hinged cover for easy access during installation and maintenance.

Feature Summary

• Provides 90-degree directional change for wireway systems
• Gasketed construction ensures environmental sealing
• Hinged cover allows tool-free access to internal wiring

Applications

• Industrial machinery wiring protection
• Right-angle cable management installations
• Environments requiring protection from oil and contaminants

Procurement Notes

Verify that the specified application requires an inside open configuration rather than outside open or closed variants. Confirm compatibility with the specific F10 Series wireway dimensions. Ensure the steel material and gray finish meet project aesthetic and corrosion requirements. Check local codes for NEMA Type 12 compliance necessity.

Selection Notes

Select this model when a 90-degree turn is required within an 8x8 inch wireway run. Consider the gasketed feature if exposure to liquids or dust is present. Evaluate whether the hinged cover simplifies future maintenance compared to removable cover alternatives. Ensure the steel construction aligns with structural load expectations.

Part Context

This fitting belongs to the nVent Hoffman F10 Series of lay-in wireway accessories. It complements straight sections and other fittings to create complete cable routing paths. The product line focuses on durable steel enclosures and raceways for industrial electrical distribution.

Replacement Considerations

Compatible substitutes include other 8x8 inch 90-degree elbows from the same manufacturer series. Verify dimensional accuracy and gasket integrity when sourcing equivalents. Ensure replacement parts maintain the original NEMA Type 12 rating.
