F88WE225

Overview

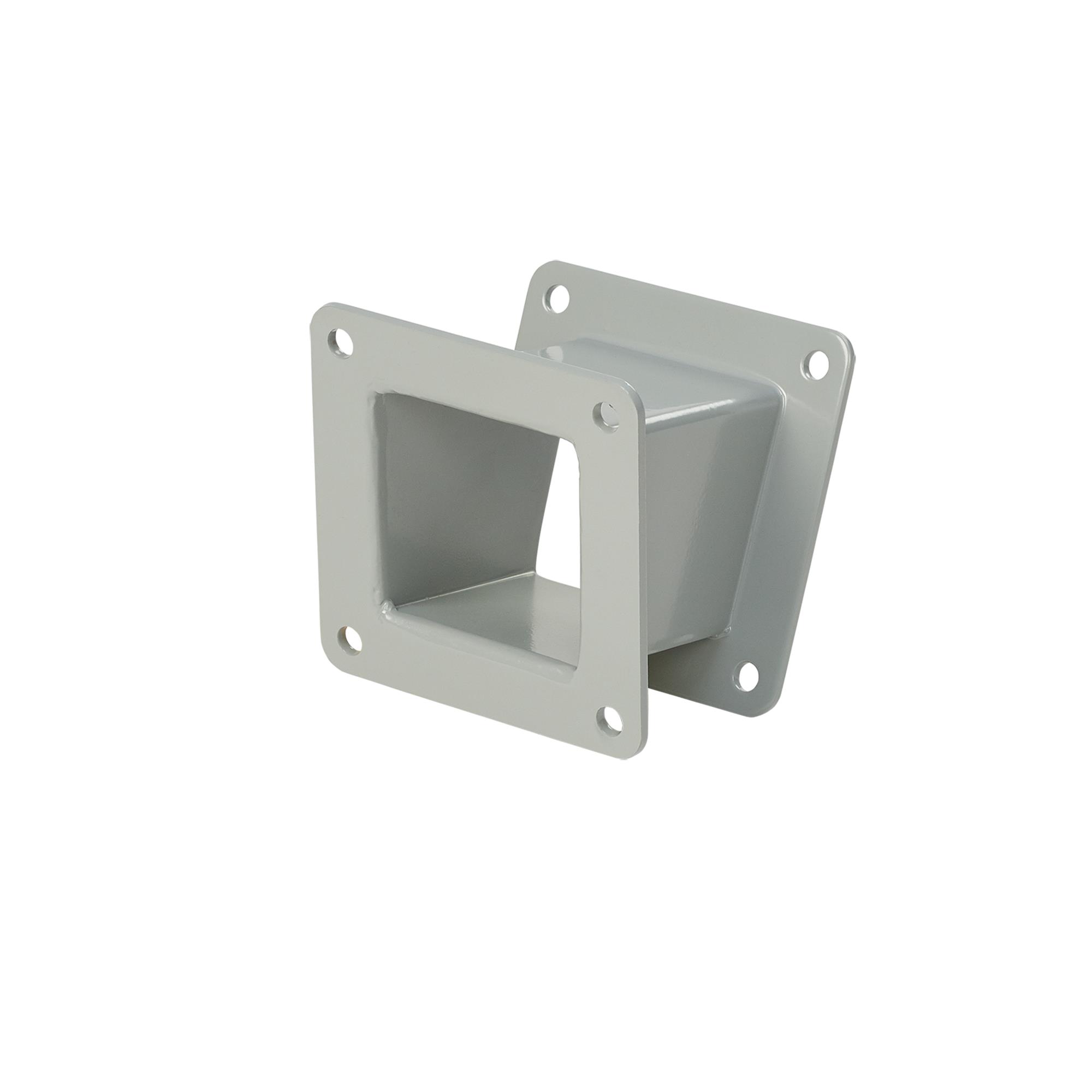

The Hoffman Enclosures F88WE225 is a 22.5-degree feed-through wireway elbow designed for cable management systems. Constructed from 14-gauge steel, it features an ANSI 61 gray polyester powder coating over a phosphatized surface finish. The fitting has internal dimensions of 8.00 inches by 8.00 inches and provides a 22.50-degree bend angle to facilitate continuous cable runs with directional changes.

Feature Summary

• Provides a 22.5-degree directional change for continuous cable routing
• Constructed from 14-gauge steel for structural durability
• Features ANSI 61 gray polyester powder coating over phosphatized surface
• Designed as a feed-through fitting to connect wireway sections

Applications

• Continuous cable runs requiring 22.5-degree turns
• Connecting wireway sections in industrial control panels
• Protecting wires during directional changes in cable management systems

Procurement Notes

Verify the specific dimensional requirements against the 8x8 inch internal size. Confirm that the 22.5-degree angle aligns with the system design. Ensure compatibility with other nVent Hoffman wireway components. Check for any specific environmental ratings required for the installation site.

Selection Notes

Select this component when a gentle 22.5-degree turn is needed in an 8x8 inch wireway system. It is suitable for applications requiring durable steel construction and standard gray finishes. Consider its use in conjunction with straight sections and other fittings to create complex routing paths while maintaining cable protection.

Part Context

This part belongs to the nVent Hoffman wireway and cable management family. It serves as a complementary accessory to straight wireway sections, allowing for flexible routing configurations. The product is manufactured by Hoffman Enclosures, Inc., now part of nVent, specializing in industrial enclosure solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing wireway systems before substitution.
