F88WP

Overview

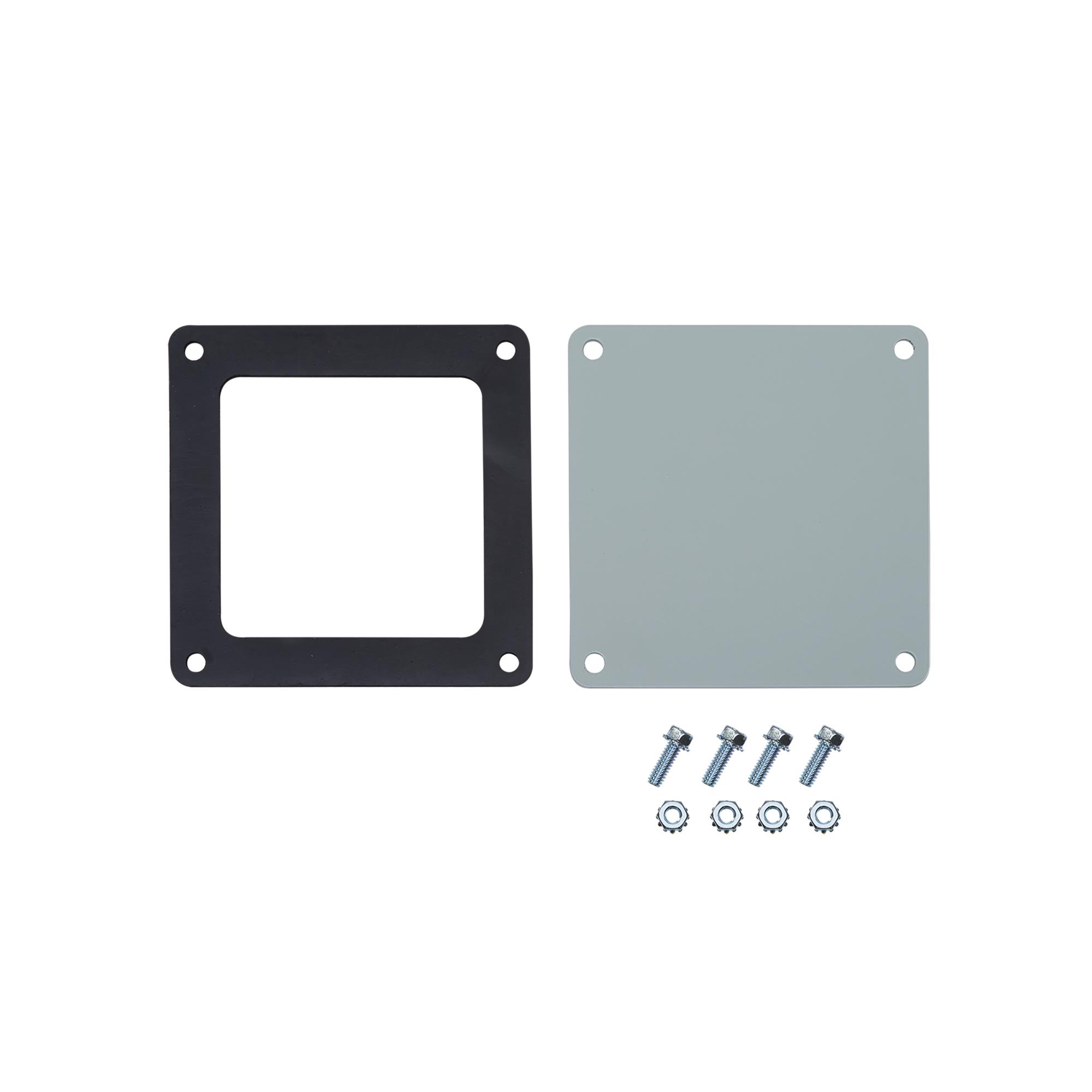

The Hoffman Enclosures F88WP is a steel closure plate designed for use with 8 x 8 inch NEMA Type 12 feed-through wireway systems. Constructed from 14-gauge steel for the body and cover, with 10-gauge steel end flanges, it features an ANSI 61 gray polyester powder paint finish. The component measures approximately 9.62 inches in length and width, serving as an end seal for wireway sections or runs to maintain environmental protection standards.

Feature Summary

• Seals the ends of wireway sections or runs
• Compatible with 8 x 8 inch NEMA Type 12 feed-through wireways
• Constructed from steel with a gray polyester powder coat finish

Applications

• Sealing ends of NEMA Type 12 feed-through wireway sections
• Closing off wireway runs in industrial enclosures
• Protecting wireway interiors from environmental contaminants

Procurement Notes

Verify compatibility with existing 8x8 inch NEMA Type 12 feed-through wireway systems before procurement. Confirm that the required material gauge (14-gauge body/cover, 10-gauge flange) meets specific structural requirements. Ensure the ANSI 61 gray finish aligns with existing enclosure aesthetics. Check for any specific mounting hardware requirements not included with the plate itself.

Selection Notes

Select this part specifically for sealing 8x8 inch feed-through wireways requiring NEMA Type 12 protection. Consider the steel construction and powder-coated finish for durability in industrial environments. Ensure the application does not require higher ingress protection ratings than Type 12 provides. Verify dimensional fit within the specific wireway series, such as the F20 series.

Part Context

This closure plate is an accessory component within the Hoffman wireway system ecosystem. It complements main wireway trunking units by providing a finished, sealed end point. It is part of a broader range of accessories including reducer bushings and other sealing components designed to maintain the integrity of electrical wiring pathways.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Ensure exact dimensional match (8x8 inch opening) and NEMA Type 12 rating when sourcing alternatives.
