FAMDB3600ZC000

Power Line Filter Modules Overview

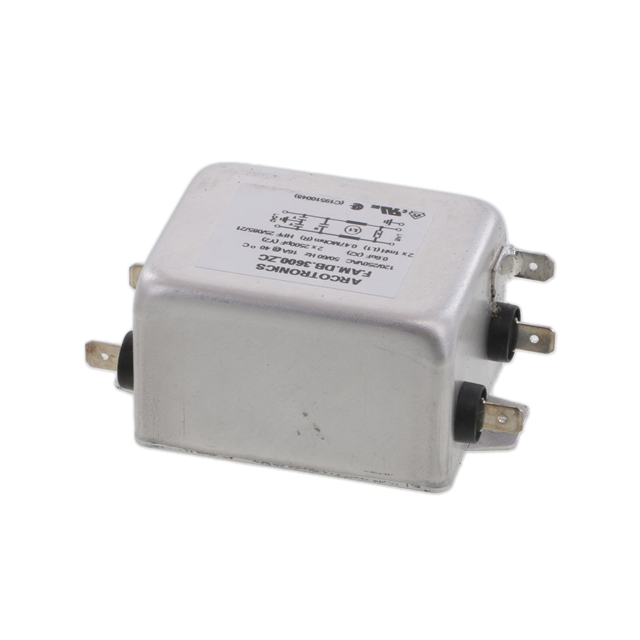

The KEMET FAMDB3600ZC000 is a single-phase EMC/EMI power line filter designed for AC mains applications. It features a metal enclosure and supports a current rating of 16 A at 250 VAC, 50/60 Hz. The filter utilizes a single-stage topology with X-capacitance of 600 nF and common-mode inductance of 1 mH. Operating temperatures range from -25°C to +85°C. Dimensions are 66 x 40 x 52 mm. It holds CSA, ENEC, UR, and IEC approvals.

Power Line Filter Modules Feature Summary

• Provides optimized attenuation for both common mode and normal mode noise
• Constructed within a compact metal enclosure for durability
• Designed for quick connect installation methods

Power Line Filter Modules Applications

• Single-phase industrial equipment power conditioning
• Medical device power supply input filtering
• Office automation machinery interference suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the FAMDB3600ZC000 to confirm exact attenuation curves and terminal configurations. Ensure the application voltage does not exceed 250 VAC and the continuous current remains within the 16 A limit. Confirm that the required safety certifications (CSA, ENEC, UR) meet local regulatory standards for the intended deployment region before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for moderate noise reduction requirements in single-phase systems. The 16 A rating suits general industrial loads but may be insufficient for high-power motor drives requiring higher current capacity. Consider the physical dimensions of 66 x 40 x 52 mm for enclosure space planning. Verify that the operating temperature range of -25°C to +85°C aligns with the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This part belongs to the KEMET FIL3600 series of power line filters. These components are engineered to suppress electromagnetic interference generated by or affecting electronic equipment connected to the AC mains. The series offers various current ratings and capacitance values to match different load profiles while maintaining compliance with international safety standards.

Power Line Filter Modules Replacement Considerations

The FAMDI3600ZE000 is a related variant within the same product family. Verify if the specific electrical characteristics and approval markings of the substitute part meet the original design requirements.
