FIN33.075.V

Power Line Filter Modules Overview

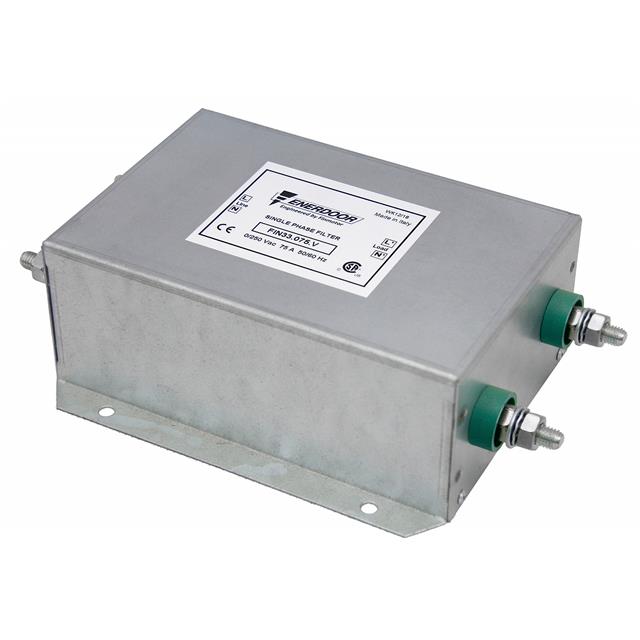

The Enerdoor FIN33.075.V is a single-phase EMC/EMI power line filter module designed for industrial applications. It features a rated current of 75 A and operates at a nominal voltage of 250 VAC with a frequency range of 50–60 Hz. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference. Electrical specifications include a potential test voltage of 1750 Vdc (phase-to-phase, 2 seconds). The component employs a threaded post mounting interface, specifically M8, for secure installation within electrical panels.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise suppression for single-phase circuits
• UL508a certified with Short Circuit Current Rating (SCCR) compliance
• Threaded post mechanical mounting interface

Power Line Filter Modules Applications

• Industrial automation control panels
• Medical equipment power supplies
• Machine tool electrical installations

Power Line Filter Modules Procurement Notes

Verify the specific ordering suffix against official Enerdoor documentation to ensure correct terminal configuration and certification status. Confirm that the required SCCR rating aligns with the panel design requirements. Cross-reference the physical mounting dimensions with the available space in the target enclosure. Ensure the ambient temperature conditions do not exceed the filter's thermal limits during operation.

Power Line Filter Modules Selection Notes

Select this model based on the circuit's continuous current demand and voltage class. The 75 A rating suits high-power single-phase loads. Verify compatibility with existing panel mounting structures due to the threaded post design. Consider the attenuation requirements for the specific noise spectrum present in the application environment before finalizing the choice.

Power Line Filter Modules Part Context

This component belongs to the Enerdoor FIN33 series of power line filters. The series offers various current ratings from 3 A to 75 A for single-phase applications. These filters are engineered to meet strict EMC standards, providing reliable noise reduction for sensitive electronic systems in demanding industrial environments.

Power Line Filter Modules Replacement Considerations

Consult official Enerdoor substitution guides for compatible alternatives. Verify that any substitute maintains the same current rating, voltage class, and mounting interface. Ensure the replacement part holds equivalent UL508a certification if SCCR compliance is required for the installation.
