FL2D-30-103

Common Mode Chokes Overview

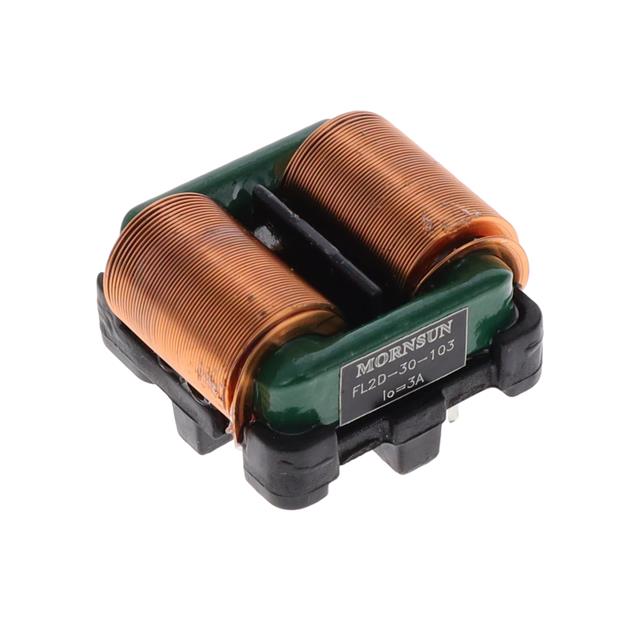

The FL2D-30-103 is a two-line common mode choke manufactured by Mornsun America, LLC. It features a nominal inductance of 10 mH measured at 1 kHz and supports a current rating of 3 A. The component utilizes a through-hole mounting style with a horizontal package configuration and four printed circuit board pins. Its typical direct current resistance is 50 mOhm. The device operates within a temperature range of -40°C to 105°C and has physical dimensions of 24.50 mm in length and 22.50 mm in width.

Common Mode Chokes Feature Summary

• Provides common mode noise suppression for two-line circuits
• Designed for through-hole vertical or horizontal PCB mounting
• Capable of handling high current loads up to 3 A

Common Mode Chokes Applications

• Power supply input filtering
• EMI suppression in industrial equipment
• Noise reduction in data transmission lines

Common Mode Chokes Procurement Notes

Verify the specific datasheet version from Mornsun America, LLC to confirm RoHS3 compliance status and exact pinout orientation. Ensure the selected variant matches the required 10 mH inductance tolerance and 3 A current carrying capacity for the target application environment.

Common Mode Chokes Selection Notes

Select this component when a robust common mode filter is required for high-current applications. The 10 mH inductance value offers significant attenuation for low-frequency noise. Verify that the through-hole package fits the available PCB space and that the operating temperature range meets the environmental requirements.

Common Mode Chokes Part Context

This part belongs to the FL2D series of common mode chokes from Mornsun. These components are engineered for electromagnetic interference suppression in power and signal lines. The series typically includes various inductance values and current ratings to suit different circuit protection needs.

Common Mode Chokes Replacement Considerations

Check for compatible parts with identical 10 mH inductance, 3 A current rating, and similar footprint dimensions. Ensure any substitute maintains the same thermal performance and electrical characteristics for reliable operation.
