FL2D-60-402

Common Mode Chokes Overview

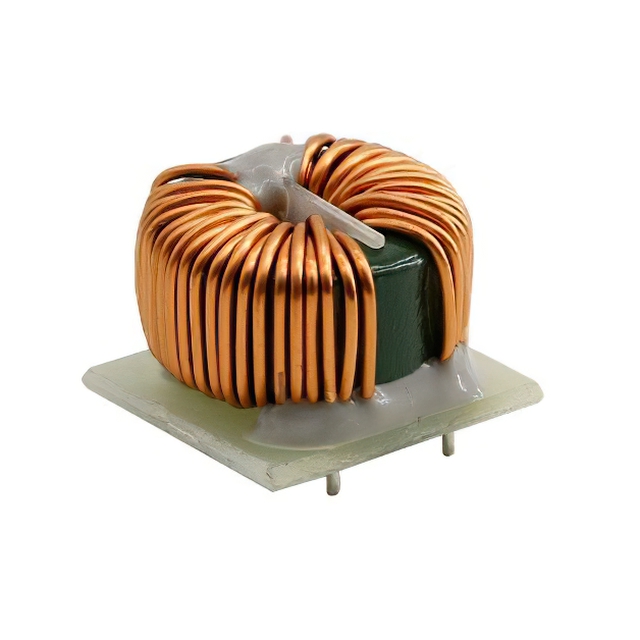

The FL2D-60-402 is a two-line common mode choke manufactured by Mornsun America, LLC. It features a nominal inductance of 4 mH and is designed for through-hole mounting. The component utilizes a horizontal package configuration with four pins. This device is intended for electromagnetic interference suppression in power line applications.

Common Mode Chokes Feature Summary

• Two-line common mode filtering capability
• Through-hole mounting technology
• Horizontal pin configuration

Common Mode Chokes Applications

• Power supply input filtering
• Electromagnetic interference suppression
• Signal integrity protection in electronic circuits

Common Mode Chokes Procurement Notes

Verify the exact manufacturer designation as Mornsun America, LLC. Confirm the part number FL2D-60-402 matches the required 4 mH inductance specification. Ensure the horizontal through-hole package type aligns with the printed circuit board layout requirements before finalizing procurement.

Common Mode Chokes Selection Notes

Select this component when a 4 mH common mode choke is required for two-line applications. Consider the horizontal through-hole form factor for assembly compatibility. Verify that the current rating and voltage specifications meet the specific circuit demands beyond the basic inductance value.

Common Mode Chokes Part Context

This component belongs to the FL2D series of common mode chokes from Mornsun America, LLC. The series provides various inductance values for different filtering needs. The FL2D-60-402 specifically offers 4 mH inductance for targeted noise reduction in power lines.

Common Mode Chokes Replacement Considerations

Check for direct substitutes within the FL2D series or equivalent common mode chokes with matching 4 mH inductance and through-hole packaging. Ensure electrical parameters such as saturation current and DC resistance are compatible with the original design requirements.
