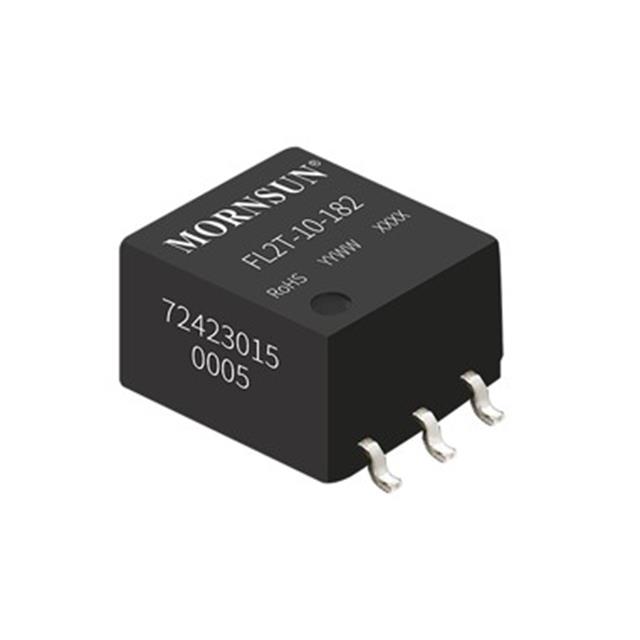

FL2T-10-182

$0.52

Description：CMC 1.86MH 1A 2LN SMD AEC-Q200
Series：FL2T-10-xxx
Mfr：Mornsun America, LLC
Package：Tray

SKU:f3676bbe7225 Category: Common Mode Chokes Brand: Mornsun America, LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FL2T-10-182 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is CMC 1.86MH 1A 2LN SMD AEC-Q200. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for FL2T-10-182

Description：CMC 1.86MH 1A 2LN SMD AEC-Q200
Series：FL2T-10-xxx
Mfr：Mornsun America, LLC
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：242mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.370" L x 0.339" W (9.40mm x 8.60mm)
Height (Max)：0.256" (6.50mm)
Package / Case：Vertical, 6 Gull Wing
Inductance @ Frequency：1.86 mH @ 10 kHz
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for FL2T-10-182

FL2T-10-182

Common Mode Chokes Overview

The FL2T-10-182 is a surface-mount common mode choke manufactured by Mornsun America, LLC. It features an inductance of 1.86 mH and a rated current of 1 A. The component is designed for two-line applications and complies with the AEC-Q200 automotive qualification standard. It utilizes a DIP SMD package configuration to facilitate automated assembly processes while providing effective electromagnetic interference suppression in electronic circuits.

Common Mode Chokes Feature Summary

AEC-Q200 qualified for automotive reliability standards
Surface mount packaging for automated processing
Two-line common mode noise filtering capability

Common Mode Chokes Applications

Automotive electronics systems
Data line signal protection
EMC compliance filtering

Common Mode Chokes Procurement Notes

Verify the specific suffix and tolerance requirements against the target design specifications. Confirm that the surface mount footprint matches the PCB layout constraints. Ensure the 1 A current rating meets the operational load requirements without saturation. Check for AEC-Q200 certification if the application involves automotive environments.

Common Mode Chokes Selection Notes

Select this component when automotive-grade reliability is required for common mode noise suppression on data lines. The 1.86 mH inductance provides effective attenuation for high-frequency interference. The surface mount format supports high-volume manufacturing. Consider the physical dimensions and thermal characteristics during the board layout phase.

Common Mode Chokes Part Context

This component belongs to the FL2T series of common mode chokes from Mornsun. It is engineered for compact electronic designs requiring robust EMI reduction. The series offers various inductance values to suit different frequency ranges. The FL2T-10-182 specifically targets applications needing moderate inductance with high current handling capabilities.

Common Mode Chokes Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing footprints and electrical parameters before considering alternative components.
