FLLD3250APHI1

Power Line Filter Modules Overview

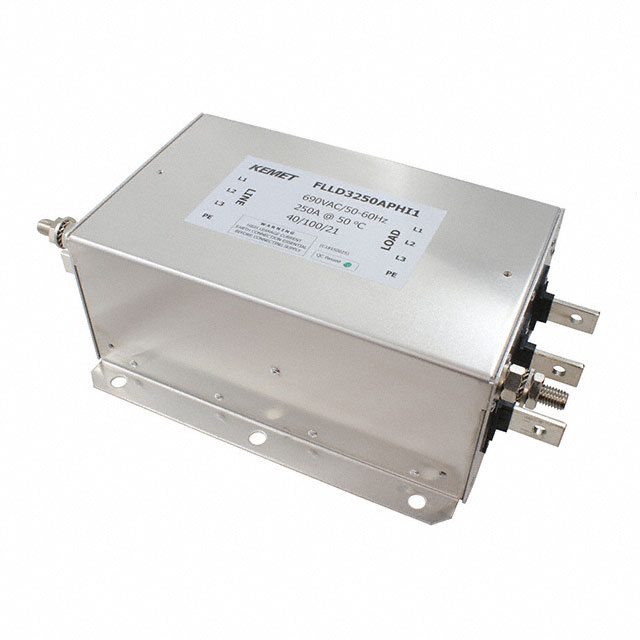

The KEMET FLLD3250APHI1 is a three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It features a two-stage filtering architecture with terminal post connections. The unit supports a rated voltage of 690VAC and a continuous current of 250A at 50/60Hz. Operating temperatures range from -40°C to +100°C, with a maximum leakage current of 5mA and power loss of 15W.

Power Line Filter Modules Feature Summary

• Two-stage EMI/RFI attenuation structure
• Terminal post connection interface
• High current capacity design

Power Line Filter Modules Applications

• Industrial motor drives
• Three-phase power distribution systems
• Heavy machinery control panels

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'HI1' against official KEMET documentation to confirm terminal configuration and mounting specifications. Ensure the application environment temperature remains within the specified -40°C to +100°C range. Confirm that the 690VAC rating aligns with the system voltage requirements before integration.

Power Line Filter Modules Selection Notes

Select this component for three-phase Delta systems requiring high current handling up to 250A. The two-stage design provides enhanced noise suppression compared to single-stage alternatives. Verify physical dimensions and terminal post spacing against the chassis layout to ensure proper mechanical fit and electrical connectivity.

Power Line Filter Modules Part Context

This model belongs to the KEMET FLLD series of high-performance EMI filters. The series offers compact designs with terminal connections for rapid installation. These filters are engineered to meet stringent electromagnetic compatibility standards in demanding industrial environments.

Power Line Filter Modules Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Generic replacements may not match the two-stage performance or terminal post specifications.
