FLZ27VA

Single Zener Diodes Overview

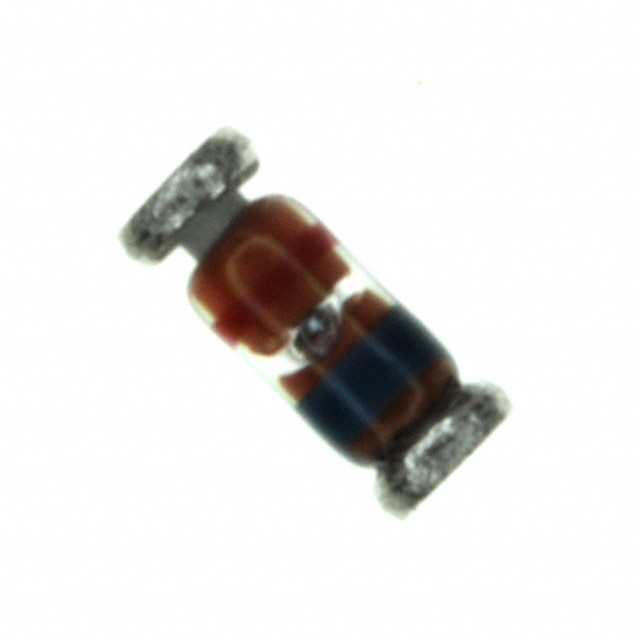

The FLZ27VA is a single Zener diode manufactured by onsemi, designed for surface-mount applications in the SOD-80 package. It features a nominal breakdown voltage of 24.9V with a tolerance of ±3%. The device is rated for a maximum power dissipation of 500mW. Key electrical characteristics include a test current associated with its voltage rating and a low leakage current typical for this class of components. It operates within a temperature range suitable for general electronic equipment.

Single Zener Diodes Feature Summary

• Single Zener diode configuration for precise voltage regulation
• Surface-mount SOD-80 package for compact PCB integration
• ±3% tolerance on breakdown voltage for accuracy
• 500mW power dissipation capability

Single Zener Diodes Applications

• Voltage reference circuits
• Clamping applications in signal lines
• Protection against overvoltage transients

Single Zener Diodes Procurement Notes

Verify the exact part number FLZ27VA against manufacturer datasheets to confirm specifications such as voltage tolerance and package type. Ensure compatibility with your design's thermal and electrical requirements before procurement.

Single Zener Diodes Selection Notes

Select this component when a stable 24.9V reference or clamp is needed in a small footprint. Consider the 500mW power rating and SOD-80 package constraints relative to your circuit's current and space limitations.

Single Zener Diodes Part Context

This component belongs to onsemi's discrete semiconductor portfolio, specifically within the Zener diode category. It is part of their broader offering for signal conditioning and protection solutions used in various consumer and industrial electronics.

Single Zener Diodes Replacement Considerations

Check for direct pin-compatible substitutes from onsemi or other manufacturers with identical 24.9V breakdown, ±3% tolerance, 500mW rating, and SOD-80 packaging to ensure functional equivalence.
