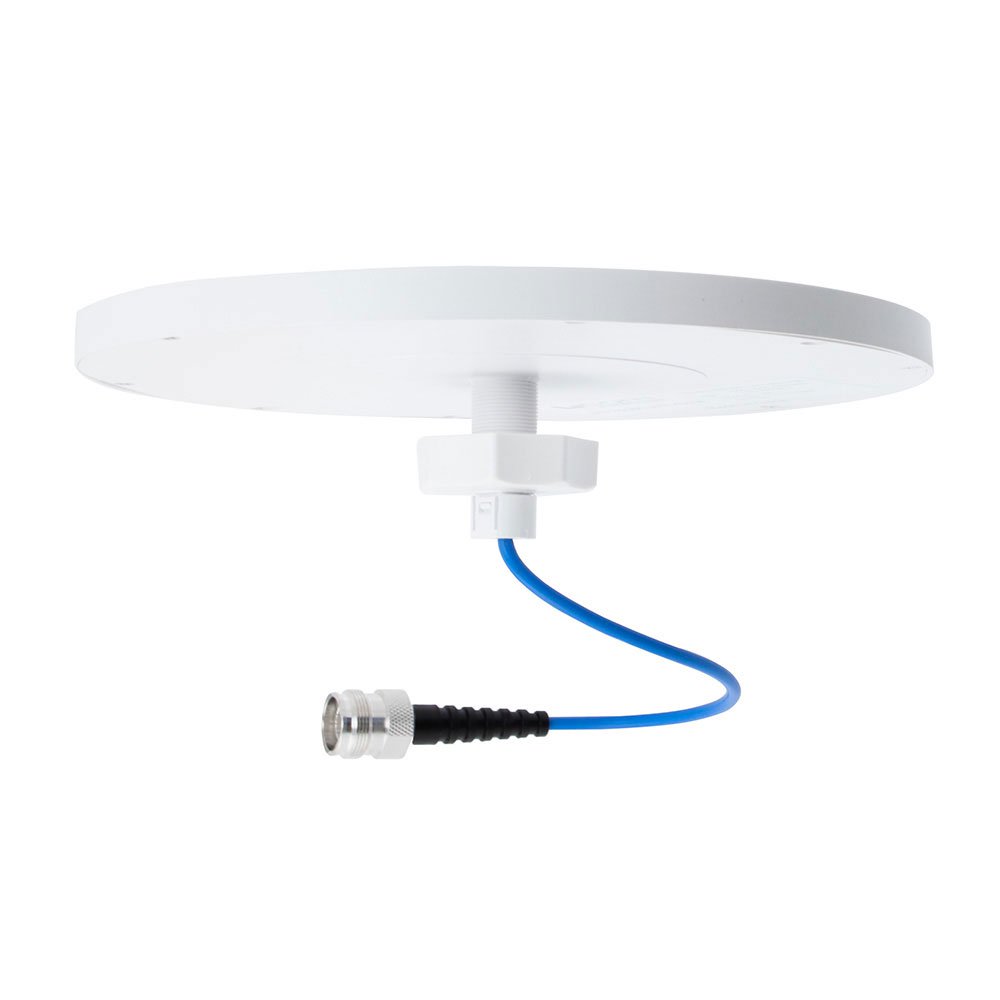

FM51226

FM51226 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA 4.3-10 JACK 698 MHZ-4.2. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FM51226

• Description：ANTENNA 4.3-10 JACK 698 MHZ-4.2
• Series：-
• Mfr：Fairview Microwave
• Package：Bag
• RF Family/Standard：Cellular
• Frequency Group：Wide Band
• Frequency (Center/Band)：829MHz, 1.45GHz, 2.195GHz, 3.75GHz
• Frequency Range：698MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz
• Antenna Type：Dome
• Number of Bands：4
• VSWR：1.8
• Return Loss：-
• Gain：2.2dBi, 3.5dBi, 4.5dBi, 5dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：4.3/10 - Female
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Ceiling Mount
• Height (Max)：0.670" (17.02mm)
• Applications：5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M
• Power - Max：50 W
