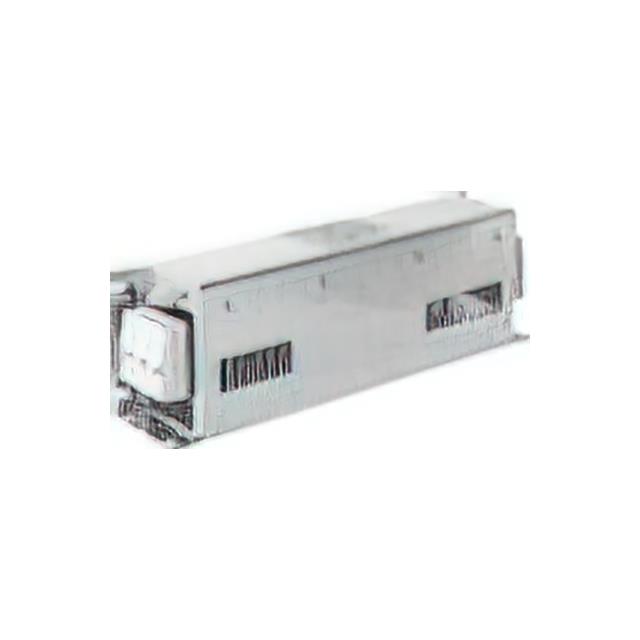

FMAC-091E-6410

Power Line Filter Modules Overview

The FMAC-091E-6410 is a three-phase power line filter module from the Schurter FMAC series, rated for 64 A at 480 V AC and 50/60 Hz. It features flange mounting with terminal block connections using M6 threaded posts. The unit provides high attenuation performance suitable for industrial EMC compliance. Key electrical parameters include a capacitance of 22 µF and an inductance of 110 µH. Physical dimensions are approximately 43 mm height, 250 mm depth, and 45.5 mm length. It operates within a temperature range of -25°C to +100°C.

Power Line Filter Modules Feature Summary

• High attenuation capability for effective electromagnetic interference suppression
• Robust flange mounting design for secure chassis integration
• Terminal block connection interface utilizing M6 threaded posts

Power Line Filter Modules Applications

• Industrial machinery requiring three-phase power filtering
• Manufacturing equipment needing EMC compliance
• Power distribution systems operating at 480V AC

Power Line Filter Modules Procurement Notes

Verify the specific current rating and voltage compatibility against your system requirements before ordering. Confirm that the flange mounting dimensions and terminal block configuration match your enclosure design. Ensure the operating temperature range meets your environmental conditions. Check for any specific certification requirements such as UL or IEC standards relevant to your region. Contact the manufacturer for detailed mechanical drawings if precise fitment is critical.

Power Line Filter Modules Selection Notes

Select this model when a high-current three-phase filter is required for 480V AC systems. The 64A rating suits heavy industrial loads. Consider the flange mount style if panel installation is preferred over DIN rail. Compare leakage current and attenuation specifications against other FMAC variants to ensure optimal noise reduction for your specific application needs.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAC series of power line filters. The series offers various current ratings and mounting options for three-phase applications. The FMAC-091E-6410 specifically targets higher current demands compared to lower-rated models like the 25A variant. It shares the general design philosophy of compact size and high performance within the FMAC family.

Power Line Filter Modules Replacement Considerations

Direct substitutes may include other FMAC series modules with similar current ratings and mounting styles. Verify that alternative parts meet the same voltage and frequency specifications. Ensure physical dimensions and terminal configurations are compatible with existing installations.
