FMAC-0932-2510L

Power Line Filter Modules Overview

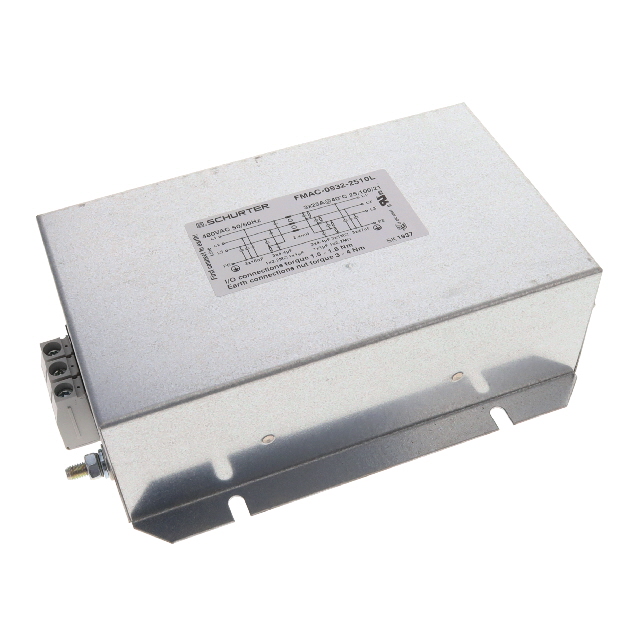

The FMAC-0932-2510L is a three-phase single-stage EMC/EMI power line filter from the Schurter FMAC series. It supports a rated current of 25 A and operates at voltages up to 480 VAC or 520 VAC at 50/60 Hz. The unit features chassis mounting with screw terminals and has dimensions of approximately 250 mm depth, 70 mm height, and 45.5 mm length. Key electrical parameters include a leakage current of 8.4 mA, capacitance of 2.2 μF, inductance of 450 μH, and resistance of 4.1 mΩ. It complies with IEC 60939 and UL 1283 standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Utilizes a single-stage filtering architecture for noise reduction
• Designed for secure chassis mounting via screw terminal connections

Power Line Filter Modules Applications

• Industrial machinery power supply conditioning
• Three-phase motor drive input protection
• Medical equipment power filtering

Power Line Filter Modules Procurement Notes

Verify the specific suffix 'L' against the manufacturer datasheet to confirm exact terminal configuration and certification status. Ensure the operating voltage matches the 480VAC or 520VAC rating. Confirm that the 25A continuous current rating aligns with the system load requirements. Check compliance with local safety standards such as UL 1283 or IEC 60939 before integration.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution is required for systems operating at 480VAC or 520VAC. The 25A current rating suits moderate-power industrial loads. Consider the physical dimensions and chassis mount style for enclosure compatibility. Verify that the leakage current of 8.4 mA meets safety limits for sensitive applications.

Power Line Filter Modules Part Context

This part belongs to the Schurter FMAC series of power line filters. The series offers various configurations for three-phase applications. The FMAC-0932-2510L specifically addresses high-current needs with robust construction. It is designed for integration into industrial control panels and power distribution units.

Power Line Filter Modules Replacement Considerations

FMAC-0932-2510 is a similar variant within the same series. Verify if the terminal type and certification markings are identical. FMAC-0934-3610 offers higher current capacity but requires different mechanical and electrical validation.
