FMAC-0932-2512I

Power Line Filter Modules Overview

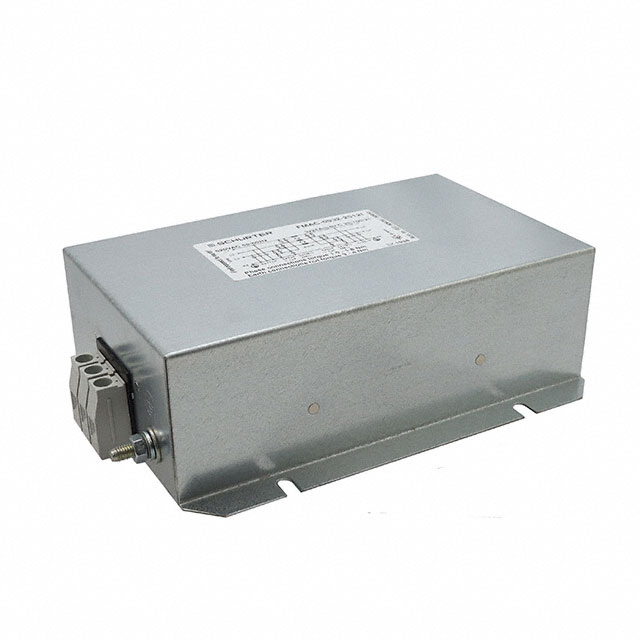

The FMAC-0932-2512I is a three-phase single-stage RFI filter from the Schurter FMAC ECO series. It supports a maximum current of 25 A and operates at voltages up to 480 V AC or 520 V AC at 60 Hz. The unit features chassis mounting with screw terminals. Key electrical parameters include a capacitance of 2.2 μF, inductance of 450 μH, leakage current of 8.9 mA, and resistance of 4.1 mΩ. Dimensions are 45.5 mm length, 70 mm height, and 250 mm depth. It complies with IEC 60939 and UL 1283 standards.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase power lines
• Designed for chassis mounting using screw terminal connections
• Constructed within the FMAC ECO product series

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive input filtering
• Commercial building electrical distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating (480V vs 520V) required for your application against the datasheet specifications. Confirm that the chassis mounting footprint matches your enclosure design. Ensure the 25A current capacity aligns with your system's load requirements. Check for updated compliance certifications such as IEC 60939 and UL 1283 before finalizing procurement.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution for three-phase noise reduction is needed. The 25A rating suits moderate industrial loads. Consider the physical dimensions of 45.5x70x250mm for panel space planning. Verify compatibility with 60Hz operation frequencies. Compare leakage current limits if sensitive equipment is connected downstream.

Power Line Filter Modules Part Context

This part belongs to the Schurter FMAC series of power line filters. The FMAC ECO variant focuses on standard electromagnetic compatibility needs. It differs from higher-capacity models like the FMAC-0934-3610 which support 36A. The series is designed for robust industrial environments requiring reliable RFI attenuation.

Power Line Filter Modules Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Evaluate similar Schurter FMAC series units based on current and voltage ratings. Ensure any alternative maintains the same chassis mounting style and screw terminal configuration.
