FMAC-0955-H212I

Power Line Filter Modules Overview

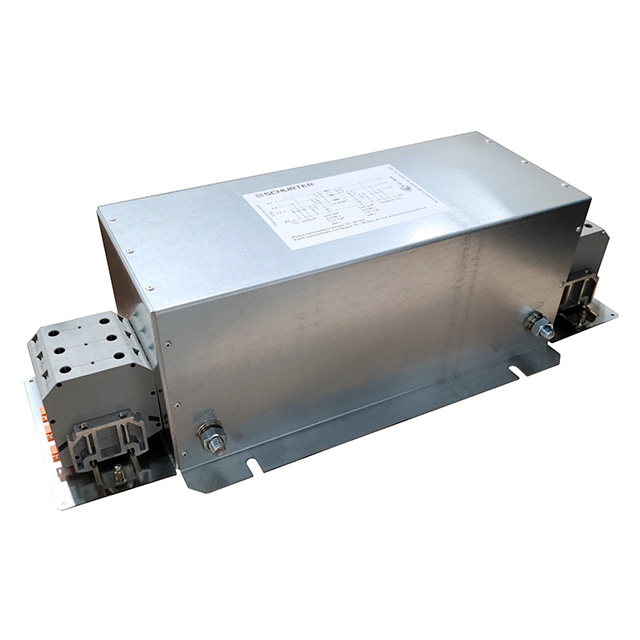

The FMAC-0955-H212I is a three-phase single-stage power line filter manufactured by SCHURTER Inc. It features a chassis mount design with screw termination for secure installation. The unit supports rated voltages of 480 VAC and 520 VAC, operating at frequencies of 50 Hz and 60 Hz. It handles a current rating of 180 A with a leakage current range of 0 to 15 mA. Certified under UL, VDE, and IEC/EN standards, this EMC/EMI filter weighs approximately 23 kg.

Power Line Filter Modules Feature Summary

• Provides protection against interference voltages from the power grid
• Designed for worldwide use with dual voltage ratings
• Suitable for photovoltaic systems

Power Line Filter Modules Applications

• Photovoltaic systems
• Industrial power conditioning
• Three-phase delta network filtering

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAC-0955-H212I against official SCHURTER documentation to confirm technical specifications. Ensure compatibility with 480V/520VAC systems and 180A current requirements. Check for required certifications such as UL, VDE, and IEC/EN compliance relevant to your region. Confirm mechanical mounting constraints and terminal types before procurement.

Power Line Filter Modules Selection Notes

Select this component for applications requiring robust three-phase EMI suppression in high-current environments. The chassis mount style and screw terminals facilitate integration into industrial enclosures. Consider the physical weight and dimensions for structural support. Verify that the leakage current limits meet safety standards for sensitive equipment connected to the filtered lines.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters from SCHURTER Inc., categorized under power condition sub-components. The series focuses on single-stage filtering solutions for demanding electrical environments. The FMAC-0955-H212I specifically addresses high-amperage three-phase applications, distinguishing itself through its substantial current handling capacity and durable construction suitable for heavy-duty industrial use.

Power Line Filter Modules Replacement Considerations

Consult official SCHURTER substitution guides for verified equivalent models. Ensure any replacement maintains identical phase configuration, current ratings, and voltage tolerances. Verify that alternative components meet the same regulatory certifications and physical mounting requirements to ensure seamless system integration without redesign.
