FMAC-0956-H410

Power Line Filter Modules Overview

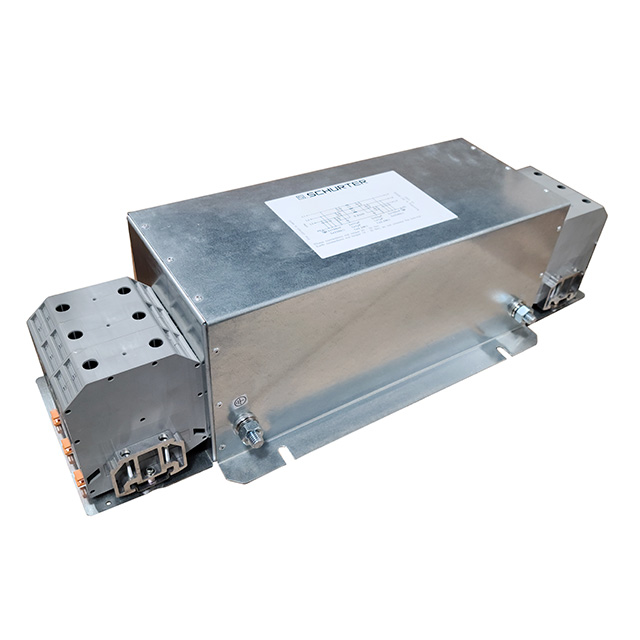

The FMAC-0956-H410 is a three-phase single-stage power line filter from the Schurter FMAC series, rated for 340 A at 480 VAC and 520 VAC. Designed for industrial applications, it operates at 50/60 Hz and utilizes chassis mounting with terminal block connections. The unit provides electromagnetic compatibility (EMC) and radio frequency interference (RFI) suppression for high-current power systems.

Power Line Filter Modules Feature Summary

• Three-phase single-stage filtering architecture
• High current capacity of 340 A
• Terminal block connection method

Power Line Filter Modules Applications

• Industrial power distribution systems
• Chassis-mounted equipment requiring EMC compliance
• High-power AC machinery protection

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 480 VAC and 520 VAC specifications before procurement. Confirm that the terminal block interface matches the existing wiring infrastructure. Ensure the chassis mounting dimensions are compatible with the installation enclosure to guarantee proper fit and thermal management during operation.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution is required for currents up to 340 A. It is suitable for environments needing robust RFI suppression in industrial settings. Consider the chassis mount style and terminal block termination when designing the electrical panel layout to ensure adequate space and accessibility for maintenance.

Power Line Filter Modules Part Context

This model belongs to the FMAC series of power line filters manufactured by Schurter Inc. The series is designed for demanding industrial applications where high current handling and effective noise suppression are critical. The FMAC-0956-H410 specifically addresses the needs of three-phase systems operating at standard utility frequencies.

Power Line Filter Modules Replacement Considerations

FMAC-0956-H310 is a documented alternative within the same series, offering similar three-phase filtering capabilities but with a different current rating of 250 A. Verify that the lower current capacity meets the specific load requirements of the application before substituting.
