FMAD-0931-0810

Power Line Filter Modules Overview

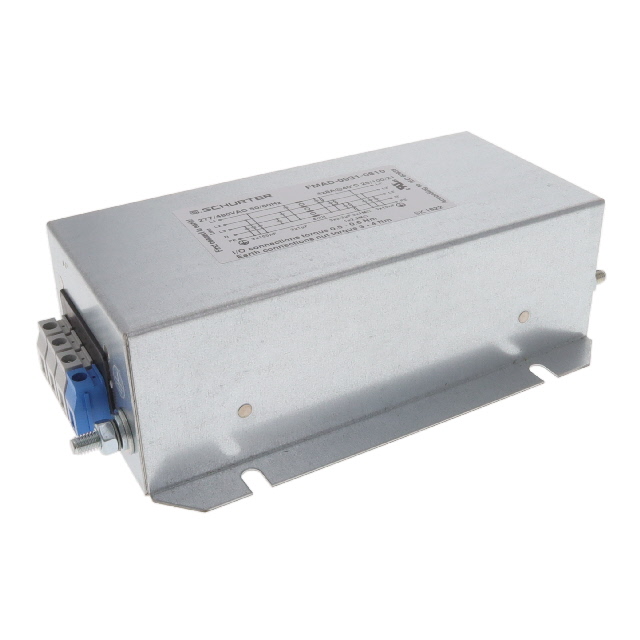

The FMAD-0931-0810 is a three-phase wye EMC/EMI line filter manufactured by Schurter Inc. It features an 8 A current rating and supports AC voltage ratings of 277 VAC and 480 VAC at operating frequencies of 50 Hz or 60 Hz. The unit utilizes a single-stage configuration with screw terminal block connections for chassis mounting. Key electrical specifications include an inductance of 8 mH and a leakage current range of 0 A to 15 mA.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression through a single-stage filtering architecture designed for three-phase power systems.
• Utilizes screw terminal blocks to ensure secure electrical connections for chassis-mounted installation.
• Engineered for general-purpose applications within specified thermal and electrical operational limits.

Power Line Filter Modules Applications

• General-purpose industrial power conditioning
• Three-phase equipment requiring EMI/RFI suppression
• Chassis-mounted power distribution units

Power Line Filter Modules Procurement Notes

Verify the specific part number FMAD-0931-0810 against official Schurter documentation to confirm compatibility with your system's voltage, current, and mounting requirements. Ensure that the screw terminal type matches your wiring infrastructure. Cross-reference certification marks such as UL and IEC with local regulatory standards before finalizing procurement decisions.

Power Line Filter Modules Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction in three-phase circuits. Confirm that the 8 A continuous current rating aligns with the load profile. Verify that the chassis mount style fits the available enclosure space and that the terminal block orientation accommodates the incoming and outgoing cable routing without strain.

Power Line Filter Modules Part Context

This component belongs to the FMAD series of power line filters from Schurter Inc., which are designed for robust performance in industrial environments. The series typically offers various current ratings and configurations to suit different power distribution needs while maintaining compliance with international safety and emissions standards.

Power Line Filter Modules Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Ensure any replacement maintains the same three-phase wye topology, 8 A rating, and 277/480 VAC voltage support. Verify physical dimensions and terminal block compatibility to avoid mechanical integration issues.

Power Line Filter Modules FAQ

What is the inductance value of the FMAD-0931-0810?

The inductance value is 8 mH.

Does this filter support both 50 Hz and 60 Hz frequencies?

Yes, the FMAD-0931-0810 is rated for operation at both 50 Hz and 60 Hz.
