FMAD-0931-1610

Power Line Filter Modules Overview

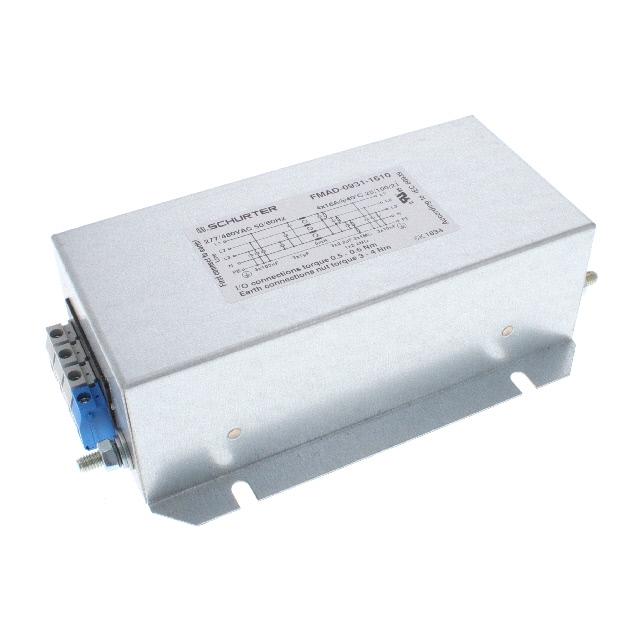

The FMAD-0931-1610 is a single-stage EMC/EMI power line filter designed for three-phase systems with a neutral conductor. Manufactured by SCHURTER Inc., this component operates at frequencies of 50/60Hz and supports rated AC voltages of 277V and 480V. It features a current rating of 16A and an inductance of 5mH. The unit utilizes block termination methods and is intended for chassis mounting. It functions within a temperature range of -25°C to 100°C and holds CE, cURus, and UKCA certifications.

Power Line Filter Modules Feature Summary

• Provides electromagnetic interference suppression for three-phase electrical circuits
• Designed for integration into chassis-mounted industrial equipment enclosures
• Supports operation across standard 50Hz and 60Hz power grid frequencies

Power Line Filter Modules Applications

• Industrial machinery power supply conditioning
• Three-phase motor drive input filtering
• Commercial building electrical distribution systems

Power Line Filter Modules Procurement Notes

Verify the specific voltage rating requirements against the 277V and 480VAC specifications before procurement. Confirm that the chassis mounting style and block termination type align with the target enclosure design. Ensure the operating environment remains within the specified -25°C to 100°C temperature range to maintain performance integrity and certification validity.

Power Line Filter Modules Selection Notes

Select this model when a single-stage filtration solution is required for three-phase loads up to 16A. Consider the physical dimensions and chassis mounting constraints during the mechanical design phase. Verify compatibility with the system's neutral conductor configuration, as the filter is specifically engineered for three-phase systems including a neutral connection.

Power Line Filter Modules Part Context

This component belongs to the FMAD series of power line filters from SCHURTER Inc. The series focuses on providing reliable EMI/EMC protection for sensitive electronic equipment connected to three-phase power networks. These filters are engineered to meet international safety and emission standards for industrial applications.

Power Line Filter Modules Replacement Considerations

Consult official SCHURTER documentation for verified substitute part numbers within the FMAD series or compatible alternative models. Do not assume interchangeability based solely on current ratings; verify inductance values, voltage ratings, and physical mounting dimensions.
