FMAD-0954-H110

$533.87

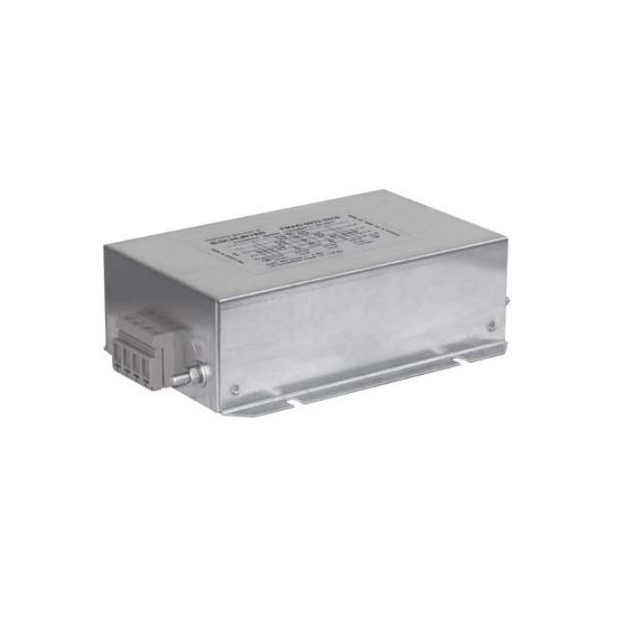

Description：LINE FILTER 277/480VAC 110A CHAS
Series：FMAD
Mfr：SCHURTER Inc.
Package：Bag

SKU:95225045846c Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMAD-0954-H110 is listed in the Power Line Filter Modules range at ChipApex. The manufacturer field lists SCHURTER Inc.. Its product description is LINE FILTER 277/480VAC 110A CHAS. Review the specifications below when checking this part for your BOM.

Power Line Filter Modules specifications for FMAD-0954-H110

Description：LINE FILTER 277/480VAC 110A CHAS
Series：FMAD
Mfr：SCHURTER Inc.
Package：Bag
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：277V, 480V
Current：110 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：cURus, VDE
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：500µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Power Line Filter Modules datasheet and documents for FMAD-0954-H110

FMAD-0954-H110

Power Line Filter Modules Overview

The FMAD-0954-H110 is a three-phase EMC/EMI line filter manufactured by Schurter Inc. It is designed for industrial applications with a rated AC voltage of 277V and 480VAC. The unit supports an operating frequency of 50Hz and 60Hz, handling a maximum current of 110A. It features terminal block termination and flange mounting. The device complies with UL, IEC, cURus, and VDE standards.

Power Line Filter Modules Feature Summary

Three-phase EMC/EMI filtering capability
Terminal block termination style
Flange mounting configuration

Power Line Filter Modules Applications

General-purpose industrial machinery
Power distribution systems
Electrical equipment requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for detailed attenuation curves and dimensional drawings before integration. Confirm that the terminal block specifications match the installation wiring requirements. Ensure the mounting flange dimensions align with the mechanical assembly constraints. Check for any recent regulatory updates regarding UL or VDE compliance for the target market.

Power Line Filter Modules Selection Notes

Select this model when a three-phase solution is required for 480VAC systems with currents up to 110A. The terminal block interface suits applications where screw connections are preferred over PCB mounts. Consider the physical depth of 387mm for enclosure space planning. Verify ambient temperature ratings against operational conditions.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMAD series of power line filters. These modules are engineered for robust performance in demanding electrical environments. The series typically offers single-stage filtering solutions. The H110 suffix indicates specific terminal and mounting configurations within the product family.
