FMAM25

RF Amplifiers Overview

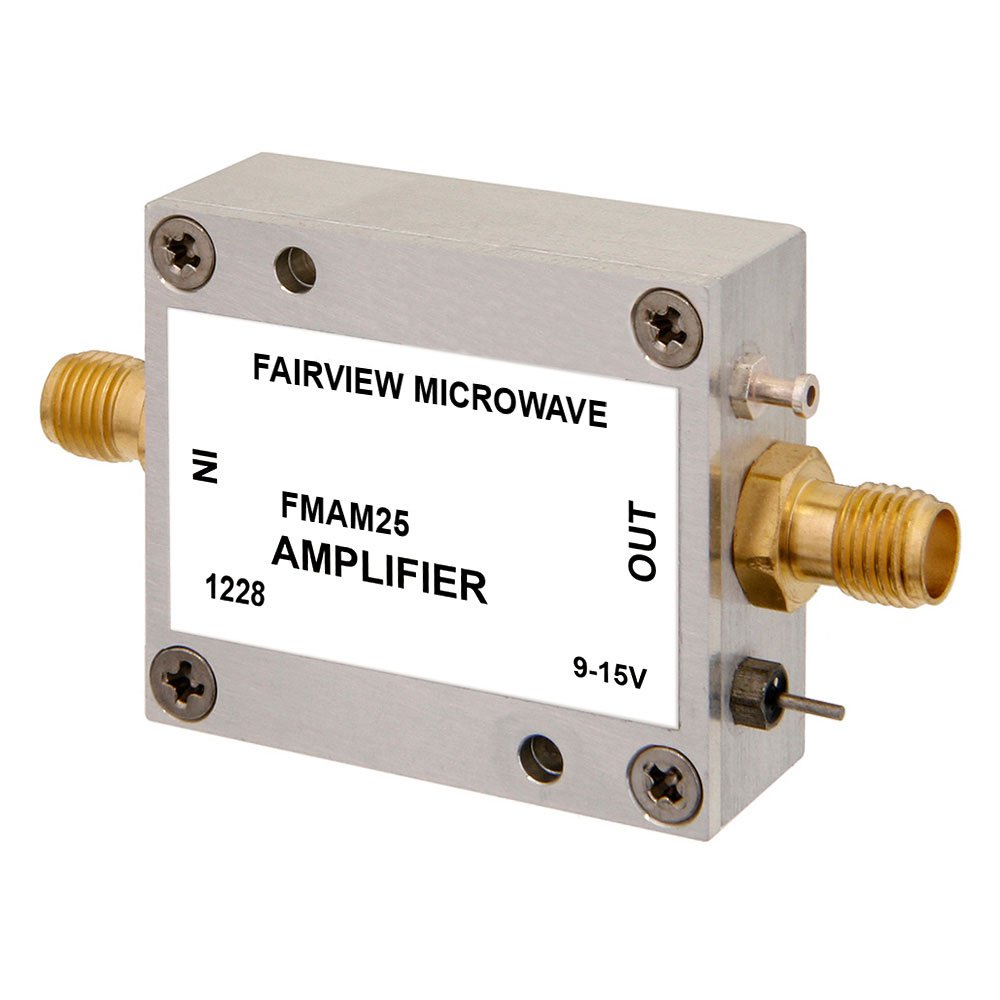

The FMAM25 is a gain block amplifier manufactured by Fairview Microwave, designed for radio frequency applications. It operates within a frequency range of 200 MHz to 2.5 GHz and provides a fixed gain of 22 dB. The device supports a supply voltage between 9 V and 15 V. Key performance metrics include a 15 dBm P1dB output power point. The unit features SMA connectors and is packaged in a bag.

RF Amplifiers Feature Summary

• Provides 22 dB gain across the 200 MHz to 2.5 GHz operational bandwidth
• Features SMA input and output connectors for standard interfacing
• Operates on a DC supply voltage ranging from 9 V to 15 V

RF Amplifiers Applications

• RF signal amplification in wireless communication systems
• Test and measurement equipment requiring stable gain blocks
• General purpose RF circuit design within specified frequency limits

RF Amplifiers Procurement Notes

Verify the specific datasheet version before integration, as specifications may vary. Confirm that the SMA connector type matches your system interface requirements. Ensure the operating environment stays within the 9 V to 15 V supply voltage range to maintain the stated 22 dB gain and 15 dBm P1dB performance. Check for any regional distribution restrictions or availability updates from authorized channels prior to ordering.

RF Amplifiers Selection Notes

Select this component when a moderate gain of 22 dB is required for frequencies up to 2.5 GHz. It is suitable for designs needing a 15 dBm P1dB output level. Consider the SMA interface compatibility and the 9 V to 15 V power supply constraints during system architecture planning. Compare against other gain block amplifiers if higher frequency coverage or different impedance matching is needed.

RF Amplifiers Part Context

This part belongs to the Fairview Microwave RF Amplifier category, specifically under Gain Block Amplifiers. It is classified within Wireless & RF Integrated Circuits. The manufacturer lists it as a new product with specific packaging in bags. It serves as a general-purpose RF module for signal conditioning tasks.
