FMAM5030

RF Amplifiers Overview

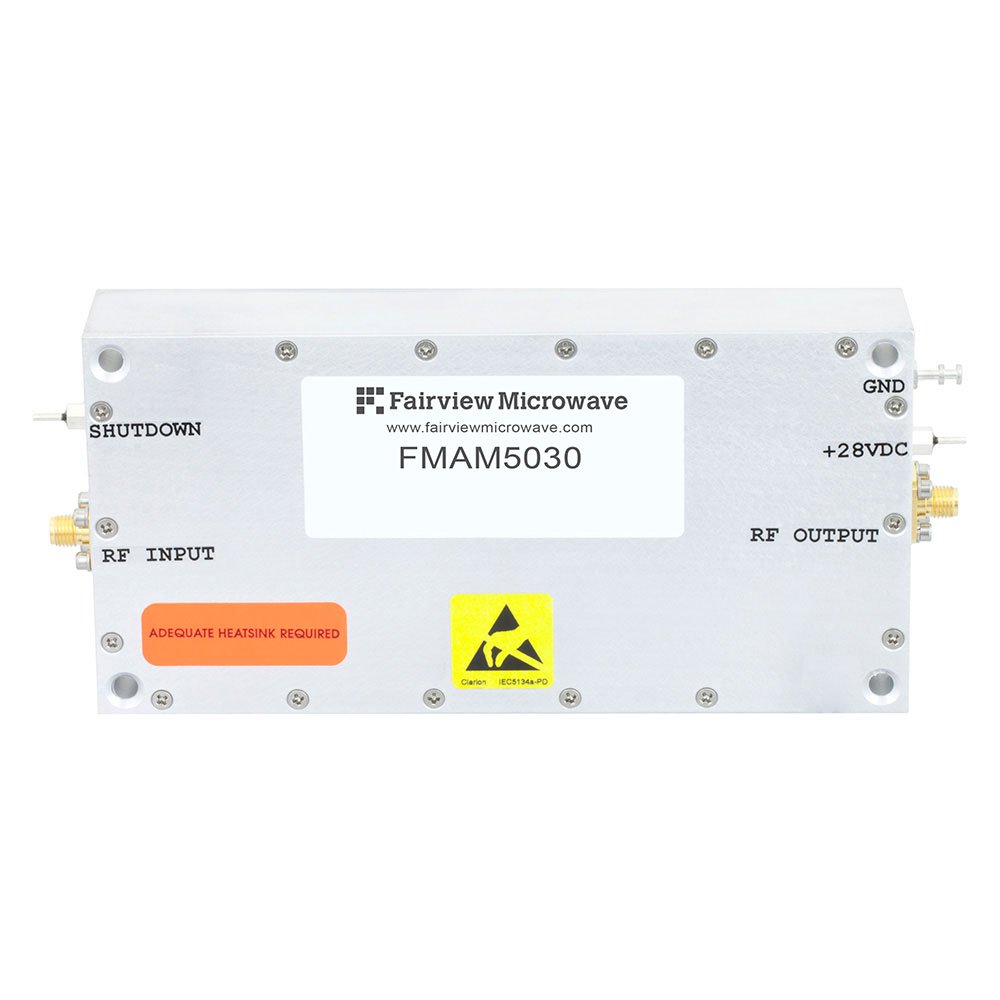

The FMAM5030 is a general-purpose RF amplifier module manufactured by Fairview Microwave. It operates within a frequency range of 1 MHz to 1 GHz. The device utilizes LDMOS technology and features SMA input and output connectors. Key electrical specifications include a gain of 36 dB, a saturated output power (Psat) of 4 Watts, and an IP3 of 39 dBm. The module is designed for broad applications requiring reliable amplification across the specified bandwidth.

RF Amplifiers Feature Summary

• Broadband operation from 1 MHz to 1 GHz
• High linearity with 39 dBm IP3
• Integrated heat sink for thermal management

RF Amplifiers Applications

• General purpose RF signal amplification
• Test and measurement equipment
• Communication systems requiring wideband coverage

RF Amplifiers Procurement Notes

Verify the specific datasheet version before procurement, as manufacturer documentation may be hosted by distributors. Confirm that the SMA connector interface matches your system requirements. Ensure the operating voltage aligns with the module's specifications. Check for any regional distribution restrictions or limited availability status prior to ordering.

RF Amplifiers Selection Notes

Select this module when a wide frequency range starting from DC/low frequencies up to 1 GHz is required. The 36 dB gain and 4 W Psat make it suitable for driving subsequent stages. Consider the integrated heat sink for high-power continuous operation scenarios where thermal dissipation is critical for performance stability.

RF Amplifiers Part Context

This component belongs to Fairview Microwave's RF Amplifier IC category, specifically under General Purpose modules. It is part of a series offering various frequency ranges and power levels. The FMAM5030F variant shares similar characteristics but may have specific packaging or compliance differences.

RF Amplifiers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Evaluate other Fairview Microwave models such as the FMAM5033F for higher power needs or different frequency bands if direct replacement is not feasible.
