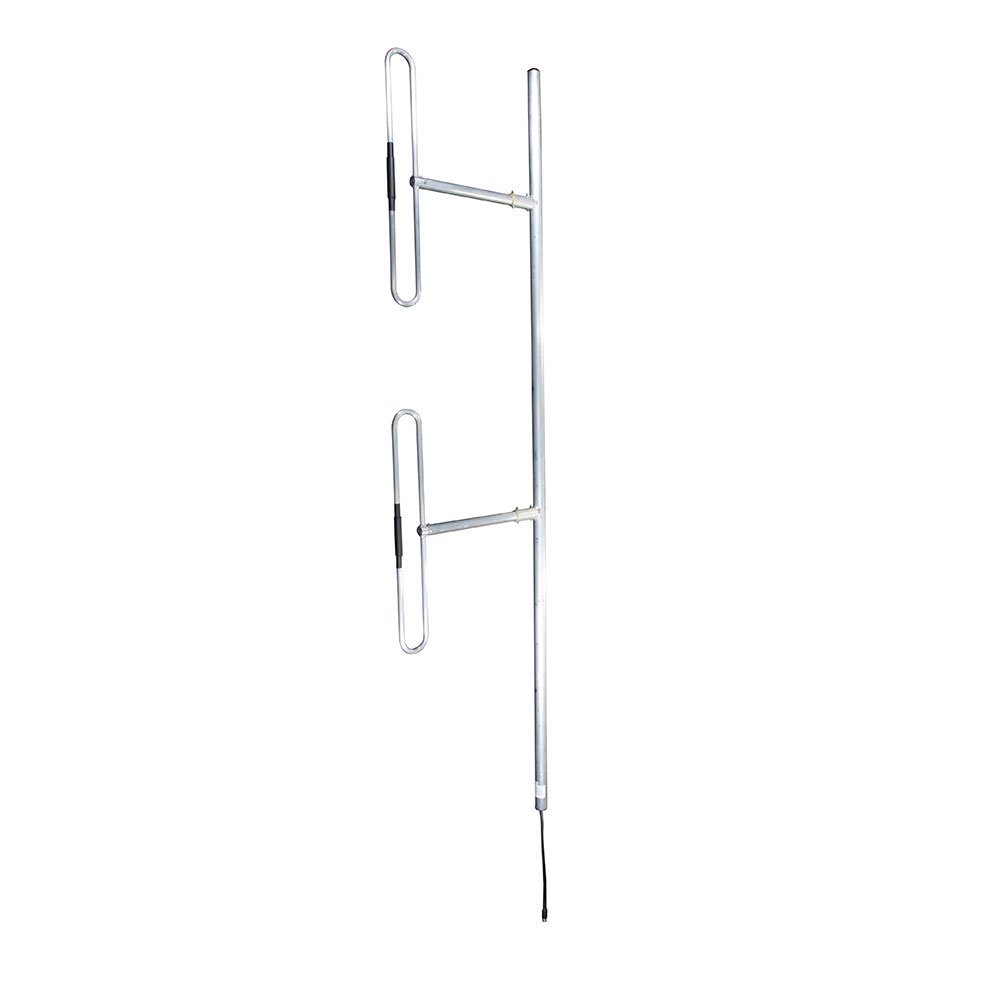

FMANED1003

FMANED1003 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA TYPE N JACK 138 MHZ-174. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMANED1003

• Description：ANTENNA TYPE N JACK 138 MHZ-174
• Series：-
• Mfr：Fairview Microwave
• Package：Bag
• RF Family/Standard：General ISM
• Frequency Group：VHF (f < 300MHz)
• Frequency (Center/Band)：156MHz
• Frequency Range：138MHz ~ 174MHz
• Antenna Type：Module
• Number of Bands：1
• VSWR：1.8
• Return Loss：-
• Gain：7.6dBi
• Features：Cable - 305mm, Cable - 1.524m, Cable - 3.048m, Cable - 7.62m
• Termination：N Type Female
• Ingress Protection：-
• Grade：-
• Qualification：-
• Mounting Type：Connector Mount
• Height (Max)：114.173" (290.00cm)
• Applications：General Purpose
• Power - Max：100 W

Antennas RF datasheet and documents for FMANED1003
