FMANMOB1005-RSP

Antennas RF Overview

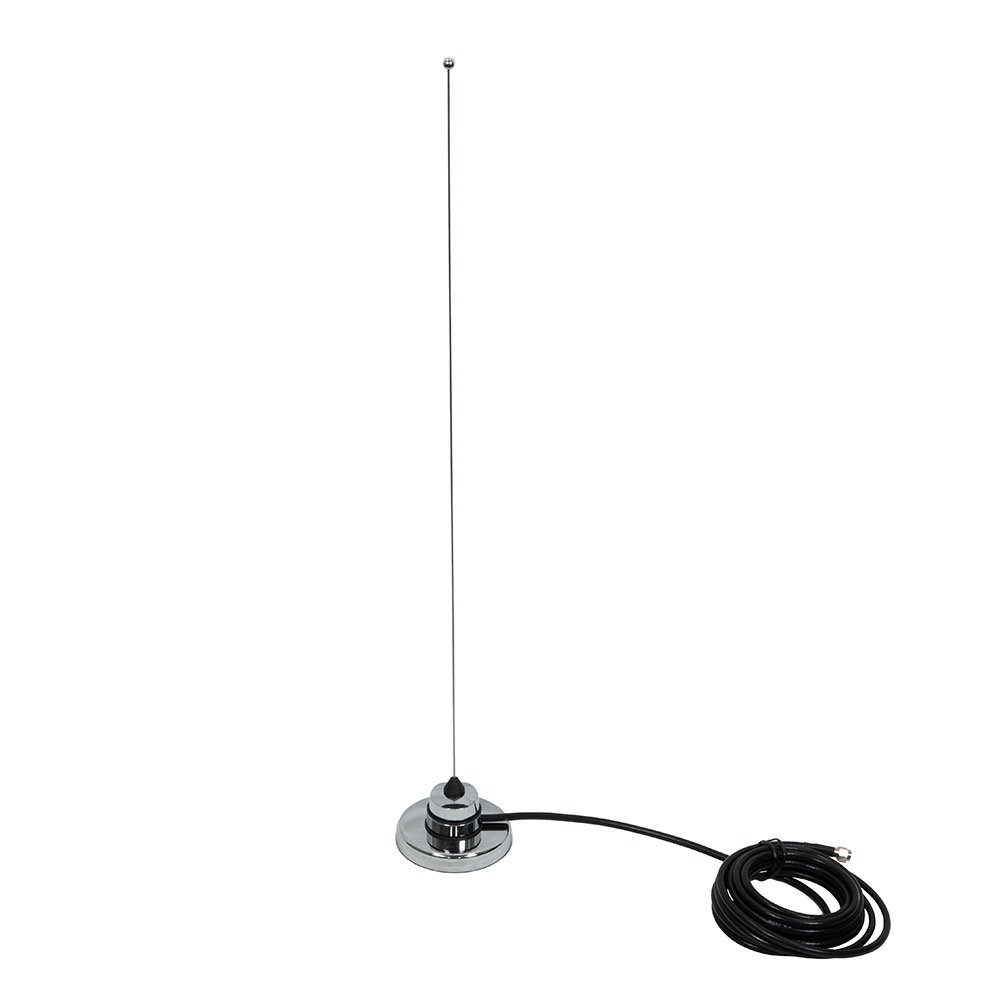

The FMANMOB1005-RSP is an omni-directional antenna manufactured by Fairview Microwave, designed for operation within the 136 MHz to 174 MHz frequency range. It provides a gain of 2.5 dBi and utilizes a reverse polarity SMA plug connector. The unit features a magnetic NMO mount style for installation flexibility. Constructed as a whip-type antenna, it supports vertical polarization. This component is categorized under outdoor antennas suitable for VHF band applications.

Antennas RF Feature Summary

• Omni-directional radiation pattern for broad coverage
• Magnetic NMO mount for flexible placement
• Reverse polarity SMA plug interface
• Whip mechanical form factor

Antennas RF Applications

• VHF radio communication systems
• Marine mobile communications
• Public safety vehicle installations
• Aviation ground station links

Antennas RF Procurement Notes

Verify the specific connector type requirement, noting the reverse polarity designation differs from standard SMA configurations. Confirm frequency compatibility with existing transceivers operating in the 136-174 MHz range. Check mounting surface requirements for the magnetic base to ensure adequate signal coupling and physical stability during operation.

Antennas RF Selection Notes

Select this model when a magnetic mounting solution is preferred over permanent hardware attachment. The reverse polarity connector requires matching cabling or adapters to connect with standard equipment. Ensure the application environment supports the whip antenna's physical profile and does not obstruct the vertical radiation pattern.

Antennas RF Part Context

This part belongs to Fairview Microwave’s line of outdoor omni-directional antennas. It shares design characteristics with other models in the series, such as the FMANMOB1004-NM and FMANMOB1005-SM, which offer similar gain and frequency specifications but differ in connector polarity or type.

Antennas RF Replacement Considerations

The FMANMOB1005-SM serves as a direct functional substitute if reverse polarity is not required, offering identical performance with a standard SMA male connector. Verify that any replacement maintains the 2.5 dBi gain and magnetic NMO mount compatibility.
