FMANMOB1008-RSP

$87.12

Description：ANTENNA SMA136 MHZ-174 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:bca42f8484e1 Category: RF Antennas Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMANMOB1008-RSP is listed in the Antennas RF range at ChipApex. The manufacturer field lists Fairview Microwave. Its product description is ANTENNA SMA136 MHZ-174 MHZ. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for FMANMOB1008-RSP

Description：ANTENNA SMA136 MHZ-174 MHZ
Series：-
Mfr：Fairview Microwave
Package：Bag
RF Family/Standard：WiFi
Frequency Group：UHF (300MHz ~ 1GHz)
Frequency (Center/Band)：155MHz
Frequency Range：136MHz ~ 174MHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.5
Return Loss：-
Gain：5.5dBi
Features：Cable - 3.05m
Termination：RP-SMA
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Base Mount
Height (Max)：54.400" (138.18cm)
Applications：Wi-Fi, WLAN
Power - Max：50 W

Antennas RF datasheet and documents for FMANMOB1008-RSP

FMANMOB1008-RSP

Antennas RF Overview

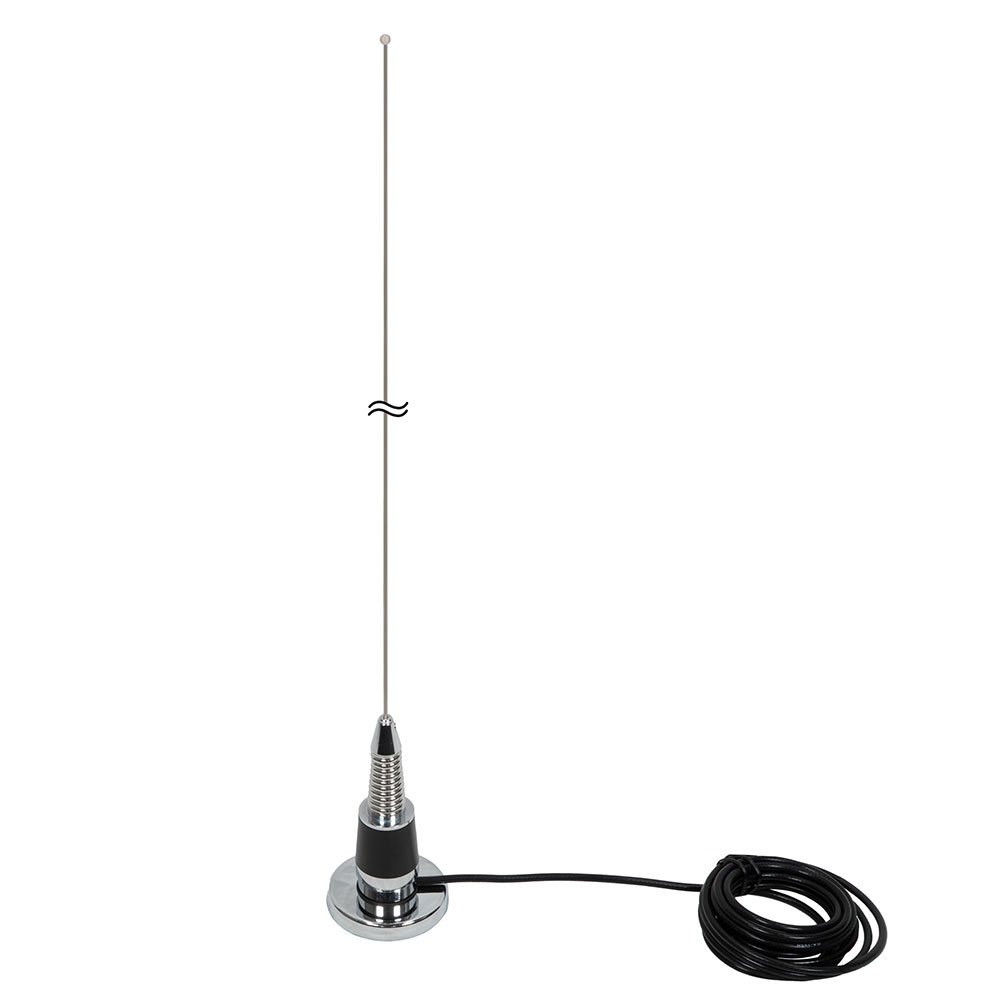

The FMANMOB1008-RSP is an omnidirectional whip antenna manufactured by Fairview Microwave, designed for operation within the 136 MHz to 174 MHz frequency range. It provides a gain of 3.5 dBi and utilizes a reverse polarity SMA plug connector. The unit features a magnetic NMO mount for installation and is vertically polarized.

Antennas RF Feature Summary

Omnidirectional radiation pattern with vertical polarization
Magnetic NMO mount for secure attachment
Reverse polarity SMA plug connector interface

Antennas RF Applications

Indoor low-profile installations
In-building signal coverage
Mobile communication applications

Antennas RF Procurement Notes

Verify the specific connector type is reverse polarity SMA plug. Confirm the mounting style matches the magnetic NMO requirement. Ensure the frequency range aligns with the 136-174 MHz specification. Check manufacturer documentation for environmental ratings and power handling limits before integration.

Antennas RF Selection Notes

Select this model when a compact, magnetically mounted solution is required for VHF band operations. The reverse polarity connector necessitates compatible cabling. Consider the 3.5 dBi gain for standard coverage needs in mobile or indoor environments where traditional mast mounting is impractical.

Antennas RF Part Context

This component belongs to Fairview Microwave's outdoor antenna series. It is part of a family of omni-directional antennas sharing similar mounting styles but differing in frequency bands and connector types. The RSP suffix specifically denotes the reverse polarity SMA configuration.
