FMBC-0958-2060

Power Line Filter Modules Overview

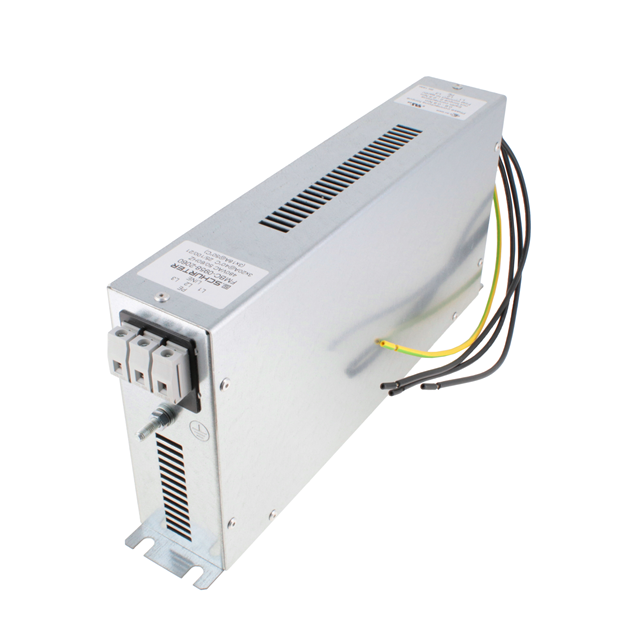

The FMBC-0958-2060 is a three-phase (Delta) EMC/EMI line filter module from the Schurter FMBC series. It features a two-stage filtering architecture designed for industrial power applications. The unit supports a rated current of 20 A and operates at voltages up to 480 V AC within a frequency range of 50 Hz to 60 Hz. Installation is achieved via chassis mounting using screw terminals. This component provides robust electromagnetic interference suppression for sensitive electronic equipment in demanding environments.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced noise attenuation
• Chassis mount design with screw terminal connections
• Optimized for three-phase Delta power systems

Power Line Filter Modules Applications

• Industrial machinery control panels
• Three-phase motor drive systems
• Factory automation equipment

Power Line Filter Modules Procurement Notes

Verify that the specific application requires a three-phase Delta configuration, as this model is not suitable for Wye systems. Confirm that the operating voltage does not exceed 480 V AC and the continuous current load remains within the 20 A rating. Ensure the installation environment allows for chassis mounting and adequate ventilation to manage thermal dissipation during operation.

Power Line Filter Modules Selection Notes

Select this model when high-density filtering is required in a modular format for three-phase applications. The two-stage design offers superior performance compared to single-stage alternatives. Consider the physical dimensions and weight constraints of the enclosure. Verify compatibility with existing screw terminal interfaces and ensure the leakage current characteristics meet system safety requirements.

Power Line Filter Modules Part Context

This component belongs to the Schurter FMBC series of power line filter modules. These modules are engineered for integration into larger electrical assemblies where space efficiency and standardized mounting are critical. The series provides various current ratings and configurations to suit different industrial power distribution needs while maintaining consistent electromagnetic compatibility standards.

Power Line Filter Modules Replacement Considerations

Direct substitutes must match the three-phase Delta topology, 20 A current rating, and 480 V AC voltage rating. Verify that any replacement maintains the two-stage filtering architecture and compatible chassis mounting footprint. Cross-reference technical datasheets to ensure identical terminal configurations and electrical performance specifications.
