FMBC-0962-6660

Power Line Filter Modules Overview

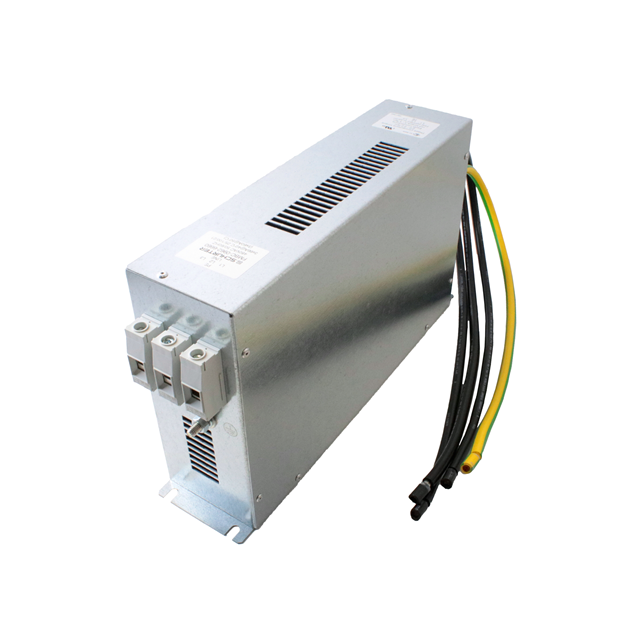

The FMBC-0962-6660 is a three-phase two-stage EMC/EMI power line filter manufactured by SCHURTER. It operates at a voltage rating of 480 VAC and supports a current rating of 66 A at frequencies of 50 Hz and 60 Hz. The component features a leakage current of 7.1 mA and utilizes terminal block connections for installation.

Power Line Filter Modules Feature Summary

• Provides two-stage attenuation for effective electromagnetic interference suppression in three-phase systems
• Designed for delta configuration applications requiring robust noise filtering
• Utilizes terminal block termination for secure electrical connections

Power Line Filter Modules Applications

• Industrial machinery requiring EMI/EMI protection
• Three-phase power distribution systems
• Equipment sensitive to electromagnetic interference

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for detailed attenuation curves and mechanical dimensions before integration. Confirm that the 480 VAC rating and 66 A current capacity align with the target circuit requirements. Ensure terminal block compatibility with existing wiring infrastructure. Check for any recent regulatory updates regarding UL, CSA, or VDE compliance status.

Power Line Filter Modules Selection Notes

Select this model for three-phase delta applications requiring high-current filtering capabilities. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the 7.1 mA leakage current impact on safety grounding requirements. Verify chassis mounting constraints and thermal management needs for continuous operation at rated load.

Power Line Filter Modules Part Context

This component belongs to the FMBC ECO series, which focuses on compact and efficient two-stage filtering solutions. The series is designed for industrial environments where space efficiency and high performance are critical. It complements other SCHURTER EMC products like the FMAB and FMAD CEE connectors.

Power Line Filter Modules FAQ

What is the phase configuration for the FMBC-0962-6660?

It is designed for three-phase delta configurations.

Does this filter support both 50 Hz and 60 Hz operations?

Yes, it is rated for operation at both 50 Hz and 60 Hz frequencies.
