FMBC-0967-1010

Power Line Filter Modules Overview

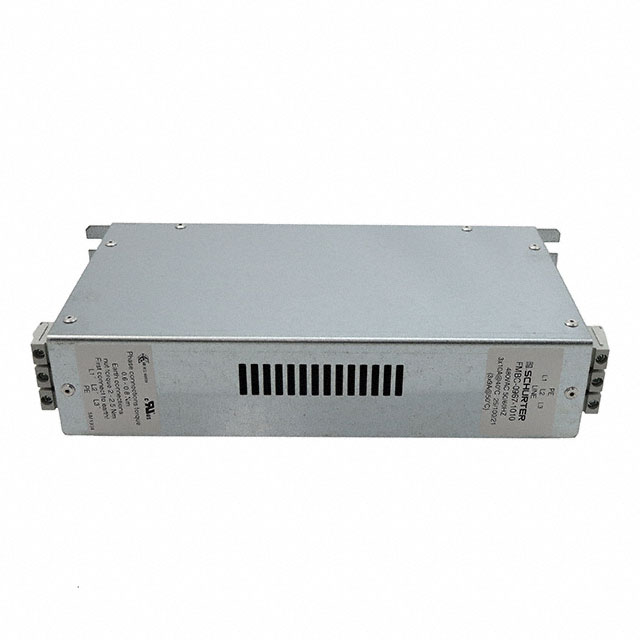

The FMBC-0967-1010 is a three-phase RFI filter from the FMBC NEO series by Schurter. It features a rated current of 10 A and a maximum voltage of 480 V AC at 50/60 Hz. The unit utilizes screw terminals for connection and chassis mounting. Key electrical parameters include a leakage current of 4.6 mA, capacitance of 6.8 μF, and inductance of 1.9 mH. It operates within a temperature range of -25°C to 100°C with a power loss of 6.8 W and resistance of 2.5 mΩ. Dimensions are 275 mm length, 85 mm height, and 50 mm depth.

Power Line Filter Modules Feature Summary

• Two-stage broadband attenuation design
• Compact bookform construction
• Chassis mount installation with screw terminals

Power Line Filter Modules Applications

• Industrial machinery power supply filtering
• Three-phase motor drive protection
• Factory automation equipment EMC compliance

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-0967-1010 against official Schurter documentation to confirm ratings. Ensure compatibility with 480V AC systems and 10A load requirements. Check for required certifications such as UL, VDE, or IEC depending on regional standards. Confirm physical dimensions fit the intended chassis space.

Power Line Filter Modules Selection Notes

Select this component for applications requiring compact three-phase filtering with low leakage current. The two-stage design provides effective noise suppression. Verify that the 10A rating meets system peak loads. Consider the thermal performance given the 6.8W power loss in enclosed environments.

Power Line Filter Modules Part Context

This component belongs to the FMBC NEO series, designed for efficient electromagnetic compatibility in industrial settings. It represents a specialized solution for three-phase power lines, distinguishing itself through its bookform structure and high reliability under varying thermal conditions.

Power Line Filter Modules Replacement Considerations

Consult Schurter's official substitution guide for direct replacements. Generic equivalents may not match the specific leakage current or attenuation characteristics. Verify pinout and mounting hole patterns before swapping.

Power Line Filter Modules FAQ

What is the leakage current specification?

The leakage current is specified as 4.6 mA.

Is this filter suitable for 50Hz and 60Hz systems?

Yes, it is rated for both 50Hz and 60Hz operating frequencies.
