FMBC-0994-2000

Power Line Filter Modules Overview

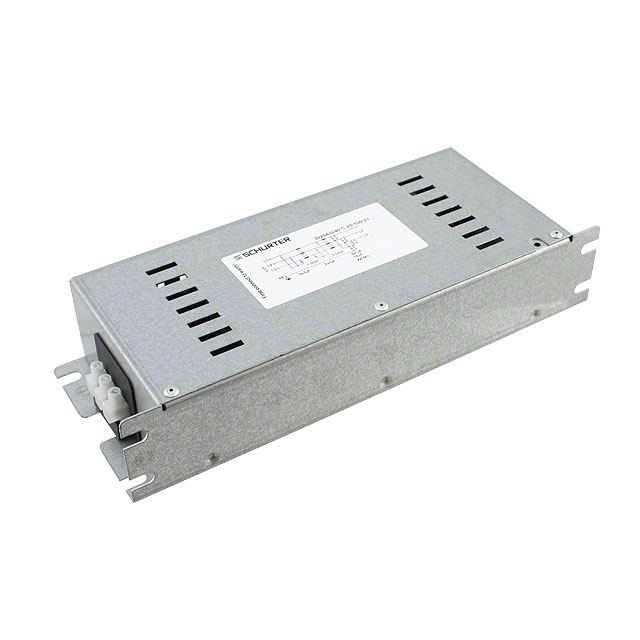

The FMBC-0994-2000 is a three-phase two-stage EMC/EMI power line filter module manufactured by SCHURTER Inc. It is rated for 20 A current and 480 V AC voltage, operating at 50/60 Hz frequencies. The unit utilizes a chassis mount installation style with terminal block connections. This component belongs to the FMBC ECO series and is designed for industrial power conditioning applications requiring robust noise suppression.

Power Line Filter Modules Feature Summary

• Three-phase two-stage filtering architecture for enhanced EMI/EMC suppression
• Chassis mount design with terminal block termination for secure integration
• Rated for 480 V AC operation at 20 A continuous current

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation equipment

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-0994-2000 against official SCHURTER documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with 480 V AC three-phase systems. Check for required certifications such as UL or CSA if applicable to your region. Confirm terminal block specifications match your wiring infrastructure before procurement.

Power Line Filter Modules Selection Notes

Select this model when three-phase noise suppression is required for high-current industrial loads. The two-stage design offers superior attenuation compared to single-stage units. Ensure the chassis mounting space accommodates the physical dimensions of the FMBC series. Verify that the terminal block connection type suits the available cabling and installation environment.

Power Line Filter Modules Part Context

This component is part of the SCHURTER FMBC ECO series, which focuses on efficient electromagnetic interference filtering for industrial power lines. The FMBC series typically provides robust performance in demanding environments, supporting various voltage and current configurations within the three-phase category.
