FMBC-0995-3600

Power Line Filter Modules Overview

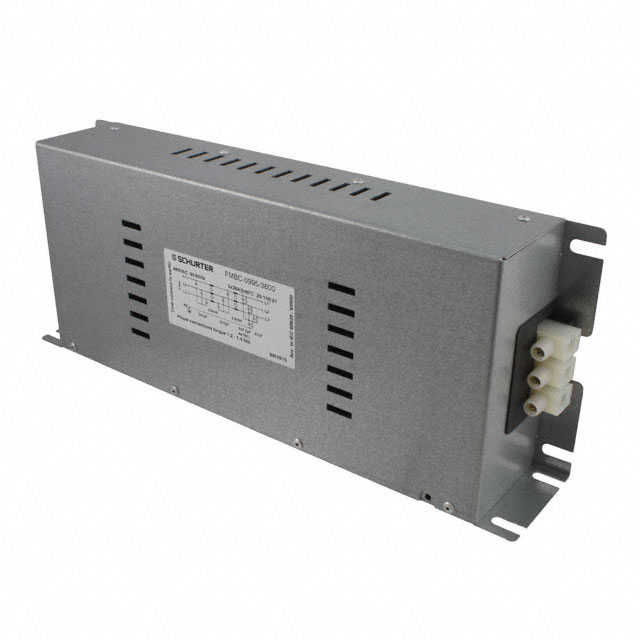

The Schurter FMBC-0995-3600 is a three-phase, two-stage RFI power line filter designed for chassis mounting. It supports a maximum current of 36 A and operates at voltages up to 480 VAC. The unit utilizes screw terminal connections for secure electrical interfacing. Certified under UL1283 standards, it ensures compliance with electromagnetic interference regulations. The filter is engineered for industrial environments, providing robust noise suppression while maintaining stable performance across standard power frequencies.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced electromagnetic interference suppression
• Chassis mount design with screw terminal connections for secure installation
• Certified to UL1283 safety standards for industrial reliability

Power Line Filter Modules Applications

• Industrial machinery power conditioning
• Three-phase motor drive systems
• Factory automation equipment

Power Line Filter Modules Procurement Notes

Verify the specific part number FMBC-0995-3600 against official Schurter documentation to confirm technical specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for updated certification marks and environmental compliance data in the latest datasheet. Confirm mechanical dimensions and mounting hole patterns match the intended chassis layout. Validate terminal type and torque specifications during integration planning.

Power Line Filter Modules Selection Notes

Select this component when a three-phase solution with high current capacity is required. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the 36 A rating aligns with peak load demands. Consider the chassis mounting style for fixed installations rather than PCB applications. Ensure the 480 VAC rating matches the supply network voltage.

Power Line Filter Modules Part Context

This model belongs to the FMBC NEO series from Schurter, which focuses on compact and efficient power line filters. The series is characterized by its modular design and suitability for demanding industrial applications. Components in this family typically feature robust construction and certified safety ratings. The FMBC-0995-3600 specifically addresses high-current three-phase needs within this product line.

Power Line Filter Modules Replacement Considerations

Consult Schurter's official substitution guide for verified equivalents. Cross-reference current ratings and physical dimensions to ensure fit. Verify that any substitute maintains the same two-stage filtering topology and UL1283 certification.
