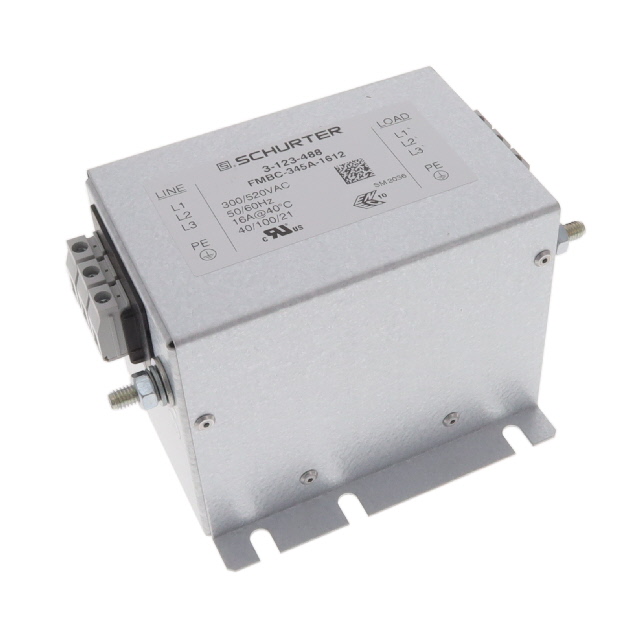

FMBC-345A-1612

Power Line Filter Modules Overview

The FMBC-345A-1612 is a three-phase EMC/EMI line filter from the Schurter FMBC NEO series, rated for 16 A current and 520 VAC. It features a two-stage configuration with 6.8 μF capacitance and 1.9 mH inductance. The unit operates between -25°C and 100°C, with dimensions of 275 x 85 x 50 mm. It utilizes screw terminals for connection and carries UL1283 certification.

Power Line Filter Modules Feature Summary

• Two-stage filtering architecture for enhanced attenuation
• Screw terminal connections for secure mounting
• Designed for general-purpose industrial power conditioning

Power Line Filter Modules Applications

• Industrial machinery power supply protection
• Three-phase motor drive systems
• General-purpose electrical equipment noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific part number against official Schurter documentation to ensure compatibility with your system requirements. Confirm that the 16 A rating and 520 VAC voltage align with your operational parameters. Check for any required certifications such as UL1283 for your target market. Ensure physical dimensions fit your enclosure constraints.

Power Line Filter Modules Selection Notes

Select this component when a robust three-phase solution is needed for moderate current applications up to 16 A. The two-stage design offers superior noise reduction compared to single-stage alternatives. Consider the screw terminal interface if PCB mounting is not feasible. Verify thermal management capabilities given the operating temperature range.

Power Line Filter Modules Part Context

This filter belongs to the FMBC NEO series, which provides compact and efficient EMC solutions. The series is designed for industrial environments requiring reliable power quality. It complements other Schurter components like fuses and connectors in complete power input systems.

Power Line Filter Modules Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate similar three-phase filters within the FMBC series or comparable industrial EMC products based on current, voltage, and dimensional requirements.
