FMG-G2CS

$1.99

Description：DIODE STANDARD 1000V 3A TO220F2L
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tube

SKU:d81cf476bbd6 Category: Single Diodes Brand: Sanken Electric USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FMG-G2CS is listed in the Single Diodes range at ChipApex. The manufacturer field lists Sanken Electric USA Inc.. Its product description is DIODE STANDARD 1000V 3A TO220F2L. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for FMG-G2CS

Description：DIODE STANDARD 1000V 3A TO220F2L
Series：-
Mfr：Sanken Electric USA Inc.
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1000 V
Current - Average Rectified (Io)：3A
Voltage - Forward (Vf) (Max) @ If：4 V @ 3 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：100 ns
Current - Reverse Leakage @ Vr：50 µA @ 1000 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-220-2 Full Pack
Supplier Device Package：TO-220F-2L
Operating Temperature - Junction：-40°C ~ 150°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for FMG-G2CS

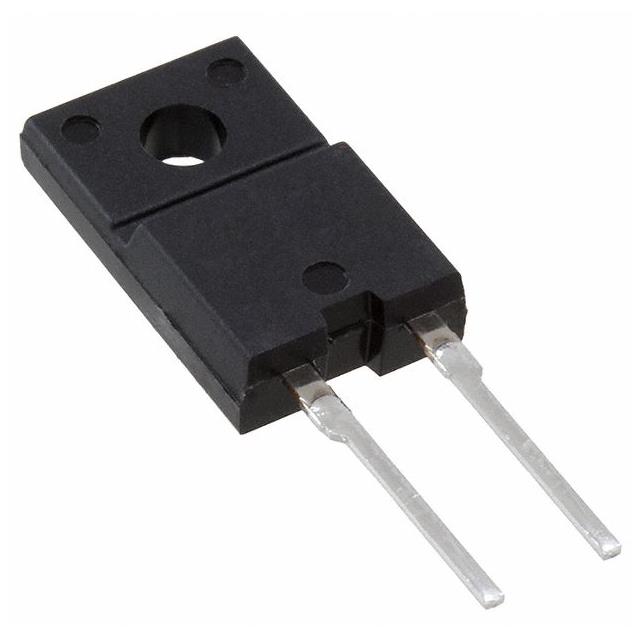

FMG-G2CS

Single Diodes Overview

The FMG-G2CS is a high voltage fast recovery diode manufactured by Sanken Electric USA Inc. It features a peak repetitive reverse voltage of 1000 V and an average forward current rating of 3.0 A. The device achieves a maximum reverse recovery time of 100 ns through optimized lifetime control. Electrical characteristics include a maximum forward voltage drop of 4.0 V at 3.0 A and a junction temperature range from -40 to 150 °C. The component utilizes a TO220F-2L package with a bare lead frame compliant with RoHS standards.

Single Diodes Feature Summary

High voltage capability with a 1000 V repetitive reverse voltage rating
Fast recovery performance achieved via optimized lifetime control
RoHS compliant construction utilizing a bare lead frame

Single Diodes Applications

High Voltage Rectification Circuit (PFC Circuit, Bridge Circuit)
Snubber Diode applications in Flyback Converters

Single Diodes Procurement Notes

Verify the specific datasheet revision against the manufacturer's official documentation before implementation. Confirm that the TO220F-2L package dimensions and thermal resistance parameters align with the target system requirements. Ensure compliance with export control regulations if applicable to the destination region.

Single Diodes Selection Notes

Select this component for circuits requiring high voltage isolation and fast switching speeds. Evaluate the thermal management strategy based on the specified junction-to-case thermal resistance. Consider derating guidelines provided in the official specification document to ensure reliability under varying operating temperatures.

Single Diodes Part Context

This component belongs to the category of high voltage fast recovery diodes designed for power electronics applications. It serves as a critical switching element in rectification and snubber circuits where rapid charge recovery is necessary to minimize switching losses and electromagnetic interference.
